pqPropertyWidgetDecorator Class Reference

pqPropertyWidgetDecorator provides a mechanism to decorate pqPropertyWidget instances to add logic to the widget to add additional control logic. More...

#include <pqPropertyWidgetDecorator.h>

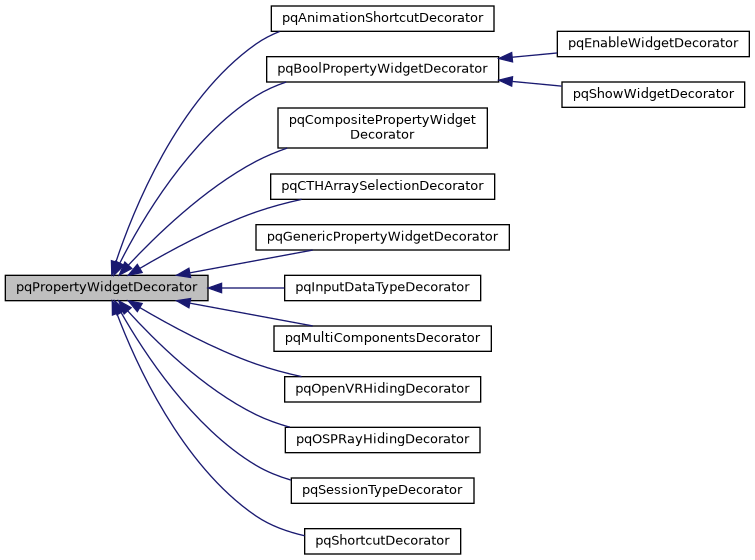

Inheritance diagram for pqPropertyWidgetDecorator:

Signals
void	visibilityChanged ()
	This signal is fired whenever the decorator has determined that the panel may need a refresh since the state of the system has changed which would deem changes in the widget visibility or enable state. More...
void	enableStateChanged ()

Public Member Functions
	pqPropertyWidgetDecorator (vtkPVXMLElement *xml, pqPropertyWidget *parent)
	Constructor. More...
	~pqPropertyWidgetDecorator () override
pqPropertyWidget *	parentWidget () const
	Returns the pqPropertyWidget parent. More...
virtual bool	canShowWidget (bool show_advanced) const
	Override this method to override the visibility of the widget in the panel. More...
virtual bool	enableWidget () const
	Override this method to override the enable state of the widget in the panel. More...

Static Public Member Functions
static pqPropertyWidgetDecorator *	create (vtkPVXMLElement *xml, pqPropertyWidget *parent)
	Creates a new decorator, given the xml config and the parent pqPropertyWidget for the decorator. More...

Protected Member Functions
vtkPVXMLElement *	xml () const

Detailed Description

pqPropertyWidgetDecorator provides a mechanism to decorate pqPropertyWidget instances to add logic to the widget to add additional control logic.

Subclasses can be used to logic to control when the widget is enabled/disabled, hidden/visible, etc. based on values of other properties of UI elements.

Definition at line 19 of file pqPropertyWidgetDecorator.h.

Constructor & Destructor Documentation

pqPropertyWidgetDecorator()

pqPropertyWidgetDecorator::pqPropertyWidgetDecorator	(	vtkPVXMLElement *	xml,
		pqPropertyWidget *	parent
	)

Constructor.

Parameters

xml	The XML element from the <Hints/> section for the proxy/property that resulted in the creation of the decorator. Decorators can be provided configuration parameters from the XML.
parent	Parent widget

~pqPropertyWidgetDecorator()

pqPropertyWidgetDecorator::~pqPropertyWidgetDecorator ( )

override

Member Function Documentation

parentWidget()

pqPropertyWidget* pqPropertyWidgetDecorator::parentWidget

(

)

const

Returns the pqPropertyWidget parent.

canShowWidget()

virtual bool pqPropertyWidgetDecorator::canShowWidget ( bool  show_advanced ) const

inlinevirtual

Override this method to override the visibility of the widget in the panel.

This is called after the generic tests for advanced and text filtering are passed. Since there can be multiple decorators, the first decorator that returns 'false' wins. Default implementation returns true. Thus subclasses typically override this method only to force the widget invisible given the current state.

Reimplemented in pqCompositePropertyWidgetDecorator, pqSessionTypeDecorator, pqGenericPropertyWidgetDecorator, pqInputDataTypeDecorator, pqMultiComponentsDecorator, pqOSPRayHidingDecorator, pqShowWidgetDecorator, and pqOpenVRHidingDecorator.

Definition at line 49 of file pqPropertyWidgetDecorator.h.

enableWidget()

virtual bool pqPropertyWidgetDecorator::enableWidget ( ) const

inlinevirtual

Override this method to override the enable state of the widget in the panel.

This is called after the generic tests for advanced and text filtering are passed. Since there can be multiple decorators, the first decorator that returns 'false' wins. Default implementation returns true. Thus subclasses typically override this method only to force the widget disabled given the current state.

Reimplemented in pqCompositePropertyWidgetDecorator, pqSessionTypeDecorator, pqGenericPropertyWidgetDecorator, pqInputDataTypeDecorator, and pqEnableWidgetDecorator.

Definition at line 63 of file pqPropertyWidgetDecorator.h.

create()

static pqPropertyWidgetDecorator* pqPropertyWidgetDecorator::create ( vtkPVXMLElement *  xml, pqPropertyWidget *  parent  )

static

Creates a new decorator, given the xml config and the parent pqPropertyWidget for the decorator.

visibilityChanged

void pqPropertyWidgetDecorator::visibilityChanged ( )

signal

This signal is fired whenever the decorator has determined that the panel may need a refresh since the state of the system has changed which would deem changes in the widget visibility or enable state.

enableStateChanged

void pqPropertyWidgetDecorator::enableStateChanged ( )

signal

xml()

vtkPVXMLElement* pqPropertyWidgetDecorator::xml ( ) const

protected

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Qt/Components/pqPropertyWidgetDecorator.h
