pqPropertyWidget represents a widget created for each property of a proxy on the pqPropertiesPanel (for the proxy's properties or display properties). More...

#include <pqPropertyWidget.h>

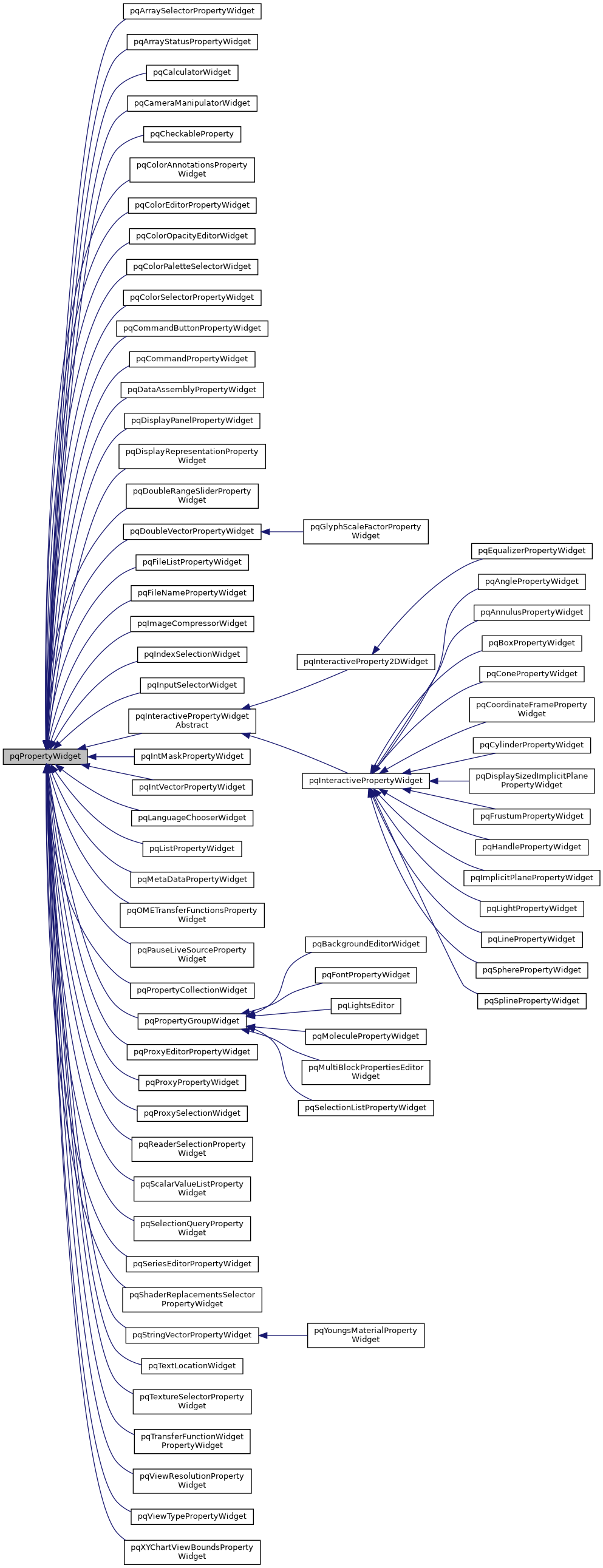

Inheritance diagram for pqPropertyWidget:

[legend]

Public Slots
virtual void	setView (pqView *)
	called to set the active view. More...

Signals
void	viewChanged (pqView *view)
	This signal is emitted when the current view changes. More...

void	changeAvailable ()
	This signal is fired as soon as the user starts editing in the widget. More...

void	changeFinished ()
	This signal is fired as soon as the user is done with making an atomic change. More...

void	restartRequired ()
	Indicates that a restart of the program is required for the setting to take effect. More...

Public Member Functions
	pqPropertyWidget (vtkSMProxy proxy, QWidget parent=nullptr)

	~pqPropertyWidget () override

virtual void	apply ()

virtual void	reset ()

virtual void	updateWidget (bool showing_advanced_properties)

pqView *	view () const

vtkSMProxy *	proxy () const

vtkSMProperty *	property () const

virtual char *	panelVisibility () const
	Forward calls to vtkSMProperty. More...

virtual void	setPanelVisibility (const char *vis)

virtual bool	isSingleRowItem () const
	Determines if the PropertyWidget must be constructed using a single row. More...

bool	showLabel () const

const QList< QPointer< pqPropertyWidgetDecorator > > &	decorators () const
	Provides access to the decorators for this widget. More...

void	setProperty (vtkSMProperty *property)


virtual void	select ()
	These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive. More...

virtual void	selectPort (int portIndex)
	These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive. More...

virtual void	deselect ()
	These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive. More...

bool	isSelected () const
	These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive. More...

Static Public Member Functions
template<class T >
static QString	getXMLName (T *object)
	Description: This static utility method returns the XML name for an object as a QString. More...

static QString	getTooltip (vtkSMProperty *property)
	Returns the tooltip to use for the property. More...

static int	hintsWidgetHeightNumberOfRows (vtkPVXMLElement *hints, int defaultValue=10)
	Helper method to return value from WidgetHeight XML hint, if any. More...

static std::vector< std::string >	parseComponentLabels (vtkPVXMLElement *hints, unsigned int elemCount=0)
	Parse a XML element as a list of label to use for this widget. More...

Protected Member Functions
void	addPropertyLink (QObject qobject, const char qproperty, const char qsignal, vtkSMProperty smproperty, int smindex=-1)

void	addPropertyLink (QObject qobject, const char qproperty, const char qsignal, vtkSMProxy smproxy, vtkSMProperty *smproperty, int smindex=-1)

void	removePropertyLink (QObject qobject, const char qproperty, const char qsignal, vtkSMProperty smproperty, int smindex=-1)

void	removePropertyLink (QObject qobject, const char qproperty, const char qsignal, vtkSMProxy smproxy, vtkSMProperty *smproperty, int smindex=-1)

void	setShowLabel (bool show)

void	setChangeAvailableAsChangeFinished (bool status)
	For most pqPropertyWidget subclasses a changeAvailable() signal, corresponds to a changeFinished() signal. More...

void	addDecorator (pqPropertyWidgetDecorator *)
	Register a decorator. More...

void	removeDecorator (pqPropertyWidgetDecorator *)
	Unregisters a decorator. More...

pqPropertyLinks &	links ()
	Provides access to the pqPropertyLinks instance. More...

Friends
class	pqCompositePropertyWidgetDecorator

class	pqPropertyWidgetDecorator

class	pqProxyWidget

Detailed Description

pqPropertyWidget represents a widget created for each property of a proxy on the pqPropertiesPanel (for the proxy's properties or display properties).

Definition at line 25 of file pqPropertyWidget.h.

Constructor & Destructor Documentation

◆ pqPropertyWidget()

pqPropertyWidget::pqPropertyWidget	(	vtkSMProxy *	proxy,
		QWidget *	parent = `nullptr`
	)

◆ ~pqPropertyWidget()

pqPropertyWidget::~pqPropertyWidget ( )

override

Member Function Documentation

◆ apply()

virtual void pqPropertyWidget::apply ( )

virtual

Reimplemented in pqCheckableProperty, pqProxySelectionWidget, pqViewResolutionPropertyWidget, pqDisplaySizedImplicitPlanePropertyWidget, pqImplicitPlanePropertyWidget, pqDoubleRangeSliderPropertyWidget, pqProxyPropertyWidget, and pqDoubleVectorPropertyWidget.

◆ reset()

virtual void pqPropertyWidget::reset ( )

virtual

Reimplemented in pqCheckableProperty, pqProxySelectionWidget, pqInteractivePropertyWidgetAbstract, pqViewResolutionPropertyWidget, pqDisplaySizedImplicitPlanePropertyWidget, pqImplicitPlanePropertyWidget, pqDoubleRangeSliderPropertyWidget, pqProxyPropertyWidget, and pqDoubleVectorPropertyWidget.

◆ select()

virtual void pqPropertyWidget::select ( )

inlinevirtual

These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive.

Only widgets that have interactive widgets need to override these methods to select/deselect the interactive widgets. selectPort(int) allows to specify an output port index and conditionnaly select the interactive widget if the XML hint WidgetVisibilityLink has been set. Default implementation does nothing.

Reimplemented in pqInteractivePropertyWidgetAbstract, pqCheckableProperty, pqProxySelectionWidget, and pqProxyPropertyWidget.

Definition at line 48 of file pqPropertyWidget.h.

◆ selectPort()

virtual void pqPropertyWidget::selectPort ( int portIndex )

inlinevirtual

These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive.

Only widgets that have interactive widgets need to override these methods to select/deselect the interactive widgets. selectPort(int) allows to specify an output port index and conditionnaly select the interactive widget if the XML hint WidgetVisibilityLink has been set. Default implementation does nothing.

Reimplemented in pqInteractivePropertyWidgetAbstract.

Definition at line 49 of file pqPropertyWidget.h.

◆ deselect()

virtual void pqPropertyWidget::deselect ( )

inlinevirtual

These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive.

Only widgets that have interactive widgets need to override these methods to select/deselect the interactive widgets. selectPort(int) allows to specify an output port index and conditionnaly select the interactive widget if the XML hint WidgetVisibilityLink has been set. Default implementation does nothing.

Reimplemented in pqInteractivePropertyWidgetAbstract, pqCheckableProperty, pqProxySelectionWidget, and pqProxyPropertyWidget.

Definition at line 50 of file pqPropertyWidget.h.

◆ isSelected()

bool pqPropertyWidget::isSelected ( ) const

inline

These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive.

Only widgets that have interactive widgets need to override these methods to select/deselect the interactive widgets. selectPort(int) allows to specify an output port index and conditionnaly select the interactive widget if the XML hint WidgetVisibilityLink has been set. Default implementation does nothing.

Definition at line 51 of file pqPropertyWidget.h.

◆ updateWidget()

virtual void pqPropertyWidget::updateWidget ( bool showing_advanced_properties )

inlinevirtual

Reimplemented in pqDataAssemblyPropertyWidget, pqColorOpacityEditorWidget, pqCheckableProperty, pqProxySelectionWidget, pqProxyPropertyWidget, and pqMoleculePropertyWidget.

Definition at line 59 of file pqPropertyWidget.h.

◆ view()

pqView* pqPropertyWidget::view ( ) const

◆ proxy()

vtkSMProxy* pqPropertyWidget::proxy ( ) const

◆ property()

vtkSMProperty* pqPropertyWidget::property ( ) const

◆ panelVisibility()

virtual char* pqPropertyWidget::panelVisibility ( ) const

virtual

Forward calls to vtkSMProperty.

Are overwritten by pqPropertyGroupWidget to forward calls to vtkSMPropertyGroup

Reimplemented in pqPropertyGroupWidget.

◆ setPanelVisibility()

virtual void pqPropertyWidget::setPanelVisibility ( const char * vis )

virtual

Reimplemented in pqCheckableProperty, pqPropertyGroupWidget, and pqProxySelectionWidget.

◆ isSingleRowItem()

virtual bool pqPropertyWidget::isSingleRowItem ( ) const

virtual

Determines if the PropertyWidget must be constructed using a single row.

Originally intended for PropertyWidgets which are a group of other Propertywidgets, such as pqCheckableProperty. This mandates that when the widget is rendered, its label to be placed in the same row as the widget group.

See also: pqProxyWidgetItem::newGroupItem

Reimplemented in pqCheckableProperty.

◆ showLabel()

bool pqPropertyWidget::showLabel ( ) const

◆ getXMLName()

template<class T >

static QString pqPropertyWidget::getXMLName ( T * object )

inlinestatic

Description: This static utility method returns the XML name for an object as a QString.

This allows for code to get the XML name of an object without having to explicitly check for a possibly nullptr char* pointer.

This is templated so that it will work with a variety of objects such as vtkSMProperty's and vtkSMDomain's. It can be called with anything that has a "char* GetXMLName()" method.

For example, to get the XML name of a vtkSMIntRangeDomain: QString name = pqPropertyWidget::getXMLName(domain);

Definition at line 104 of file pqPropertyWidget.h.

◆ decorators()

const QList<QPointer<pqPropertyWidgetDecorator> >& pqPropertyWidget::decorators ( ) const

inline

Provides access to the decorators for this widget.

Definition at line 112 of file pqPropertyWidget.h.

◆ getTooltip()

static QString pqPropertyWidget::getTooltip ( vtkSMProperty * property )

static

Returns the tooltip to use for the property.

May return an empty string.

◆ hintsWidgetHeightNumberOfRows()

static int pqPropertyWidget::hintsWidgetHeightNumberOfRows	(	vtkPVXMLElement *	hints,
		int	defaultValue = `10`
	)

static

Helper method to return value from WidgetHeight XML hint, if any.

<WidgetHeight number_of_rows="val">,

◆ parseComponentLabels()

static std::vector<std::string> pqPropertyWidget::parseComponentLabels	(	vtkPVXMLElement *	hints,
		unsigned int	elemCount = `0`
	)

static

Parse a XML element as a list of label to use for this widget.

This is usually the XML node named ShowComponentLabels in the hints of a proxy. elemCount is a hint of the number of labels to use. Set to 0 to use the number of labels existing in the XML.

◆ viewChanged

void pqPropertyWidget::viewChanged ( pqView * view )

signal

This signal is emitted when the current view changes.

◆ changeAvailable

void pqPropertyWidget::changeAvailable ( )

signal

This signal is fired as soon as the user starts editing in the widget.

The editing may not be complete.

◆ changeFinished

void pqPropertyWidget::changeFinished ( )

signal

This signal is fired as soon as the user is done with making an atomic change.

changeAvailable() is always fired before changeFinished().

◆ restartRequired

void pqPropertyWidget::restartRequired ( )

signal

Indicates that a restart of the program is required for the setting to take effect.

◆ setView

virtual void pqPropertyWidget::setView ( pqView * )

virtualslot

called to set the active view.

This will fire the viewChanged() signal.

Reimplemented in pqCheckableProperty, pqProxySelectionWidget, and pqInteractivePropertyWidgetAbstract.

◆ addPropertyLink() [1/2]

void pqPropertyWidget::addPropertyLink	(	QObject *	qobject,
		const char *	qproperty,
		const char *	qsignal,
		vtkSMProperty *	smproperty,
		int	smindex = `-1`
	)

protected

◆ addPropertyLink() [2/2]

void pqPropertyWidget::addPropertyLink	(	QObject *	qobject,
		const char *	qproperty,
		const char *	qsignal,
		vtkSMProxy *	smproxy,
		vtkSMProperty *	smproperty,
		int	smindex = `-1`
	)

protected

◆ removePropertyLink() [1/2]

void pqPropertyWidget::removePropertyLink	(	QObject *	qobject,
		const char *	qproperty,
		const char *	qsignal,
		vtkSMProperty *	smproperty,
		int	smindex = `-1`
	)

protected

◆ removePropertyLink() [2/2]

void pqPropertyWidget::removePropertyLink	(	QObject *	qobject,
		const char *	qproperty,
		const char *	qsignal,
		vtkSMProxy *	smproxy,
		vtkSMProperty *	smproperty,
		int	smindex = `-1`
	)

protected

◆ setShowLabel()

void pqPropertyWidget::setShowLabel ( bool show )

protected

◆ setChangeAvailableAsChangeFinished()

void pqPropertyWidget::setChangeAvailableAsChangeFinished ( bool status )

inlineprotected

For most pqPropertyWidget subclasses a changeAvailable() signal, corresponds to a changeFinished() signal.

Hence by default we connect the two together. For subclasses that don't follow this pattern should call this method with 'false' to disconnect changeAvailable() and changeFinished() signals. In that case, the subclass must explicitly fire changeFinished() signal.

Definition at line 189 of file pqPropertyWidget.h.

◆ addDecorator()

void pqPropertyWidget::addDecorator ( pqPropertyWidgetDecorator * )

protected

Register a decorator.

The pqPropertyWidget takes over the ownership of the decorator. The decorator will be deleted when the pqPropertyWidget is destroyed.

◆ removeDecorator()

void pqPropertyWidget::removeDecorator ( pqPropertyWidgetDecorator * )

protected

Unregisters a decorator.

◆ links()

pqPropertyLinks& pqPropertyWidget::links ( )

inlineprotected

Provides access to the pqPropertyLinks instance.

Definition at line 209 of file pqPropertyWidget.h.

◆ setProperty()

void pqPropertyWidget::setProperty ( vtkSMProperty * property )

Friends And Related Function Documentation

◆ pqCompositePropertyWidgetDecorator

friend class pqCompositePropertyWidgetDecorator

friend

Definition at line 215 of file pqPropertyWidget.h.

◆ pqPropertyWidgetDecorator

friend class pqPropertyWidgetDecorator

friend

Definition at line 216 of file pqPropertyWidget.h.

◆ pqProxyWidget

friend class pqProxyWidget

friend

Definition at line 217 of file pqPropertyWidget.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Qt/Components/pqPropertyWidget.h

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ pqPropertyWidget()

◆ ~pqPropertyWidget()

Member Function Documentation

◆ apply()

◆ reset()

◆ select()

◆ selectPort()

◆ deselect()

◆ isSelected()

◆ updateWidget()

◆ view()

◆ proxy()

◆ property()

◆ panelVisibility()

◆ setPanelVisibility()

◆ isSingleRowItem()

◆ showLabel()

◆ getXMLName()

◆ decorators()

◆ getTooltip()

◆ hintsWidgetHeightNumberOfRows()

◆ parseComponentLabels()

◆ viewChanged

◆ changeAvailable

◆ changeFinished

◆ restartRequired

◆ setView

◆ addPropertyLink() [1/2]

◆ addPropertyLink() [2/2]

◆ removePropertyLink() [1/2]

◆ removePropertyLink() [2/2]

◆ setShowLabel()

◆ setChangeAvailableAsChangeFinished()

◆ addDecorator()

◆ removeDecorator()

◆ links()

◆ setProperty()

Friends And Related Function Documentation

◆ pqCompositePropertyWidgetDecorator

◆ pqPropertyWidgetDecorator

◆ pqProxyWidget
