pqView Class Referenceabstract

This is a PQ abstraction of a generic view module. More...

#include <pqView.h>

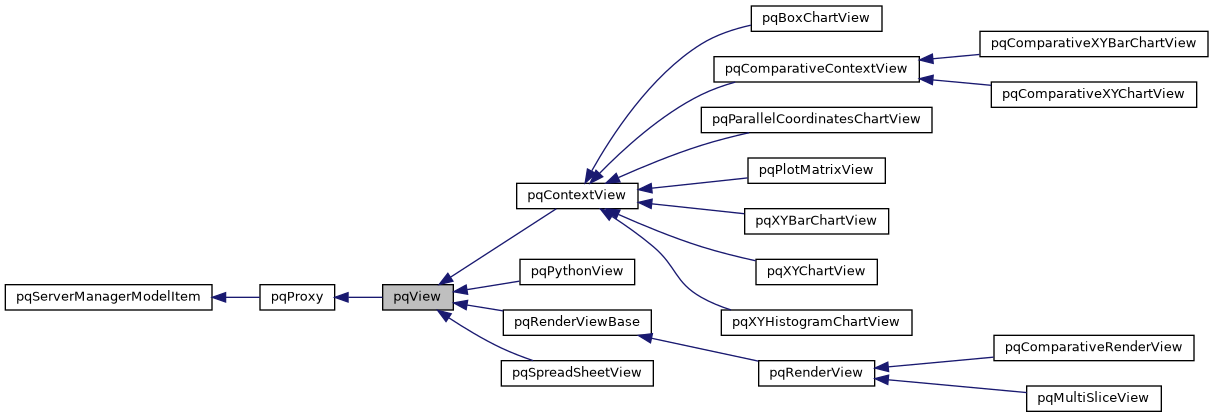

Inheritance diagram for pqView:
Inheritance graph
[legend]
Collaboration diagram for pqView:
Collaboration graph
[legend]

Public Types

enum  SelectionModifier { PV_SELECTION_DEFAULT = 0, PV_SELECTION_ADDITION, PV_SELECTION_SUBTRACTION, PV_SELECTION_TOGGLE }

- Public Types inherited from pqProxy
enum  ModifiedState { UNINITIALIZED, MODIFIED, UNMODIFIED }
 The modification state of this proxy. More...


Public Slots

virtual void render ()
 Request a StillRender on idle. More...

virtual void forceRender ()
 Forces an immediate render. More...

void cancelPendingRenders ()
 Cancels any pending renders. More...

virtual void undo ()
 Called to undo interaction. More...

virtual void redo ()
 Called to redo interaction. More...

virtual void resetDisplay (bool closest=false)
 Called to reset the view's display. More...


Signals

void updateDataEvent ()
 Fired when the vtkSMViewProxy fires the vtkCommand::UpdateDataEvent The view proxy fires this event at the end of vtkSMViewProxy::Update() when the update executes, not just when the method is called. More...

void representationAdded (pqRepresentation *)
 Fired after a representation has been added to this view. More...

void representationRemoved (pqRepresentation *)
 Fired after a representation has been removed from this view. More...

void beginRender ()
 Fired when the render module fires a vtkCommand::StartEvent signalling the beginning of rendering. More...

void endRender ()
 Fired when the render module fires a vtkCommand::EndEvent signalling the end of rendering. More...

void representationVisibilityChanged (pqRepresentation *repr, bool visible)
 Fired when any representation visibility changes. More...

void canUndoChanged (bool)
 Fired when interaction undo stack status changes. More...

void canRedoChanged (bool)
 Fired when interaction undo stack status changes. More...

void selected (pqOutputPort *opport)
 Fired when a selection is made in this view. More...

void picked (pqOutputPort *opport)
 Fired when a port is picked. More...

void beginProgress ()
 Fired before doing any actions that may result in progress events that must be reported by the client. More...

void endProgress ()
 Fired after performing any actions that may result in progress events. More...

void progress (const QString &message, int percent_progress)
 Fired to notify the current execution progress. More...

void multipleSelected (QList< pqOutputPort *> opports)
 Fired when UseMultipleRepresentationSelection is set to on and selection on multiple representations is made in this view. More...

- Signals inherited from pqProxy
void nameChanged (pqServerManagerModelItem *)
 Fired when the name of the proxy is changed. More...

void modifiedStateChanged (pqServerManagerModelItem *)
 Fired when the modified status changes for the proxy. More...


Public Member Functions

 ~pqView () override

vtkSMViewProxygetViewProxy () const
 Returns the internal render Module proxy associated with this object. More...

virtual vtkViewgetClientSideView () const
 Return the client-side vtkView encapsulated by this view (if any), or return nullptr. More...

QWidget * widget ()
 Return a widget associated with this view. More...

virtual bool supportsUndo () const
 Returns if this view module can support undo/redo. More...

virtual bool supportsCapture () const
 Returns if this view module can support image capture. More...

QString getViewType () const
 Returns the type of this view module. More...

virtual bool canUndo () const
 Returns true if undo can be done. More...

virtual bool canRedo () const
 Returns true if redo can be done. More...

virtual QSize getSize ()
 Returns the current size of the rendering context. More...

bool hasRepresentation (pqRepresentation *repr) const
 This method checks if the representation is shown in this view. More...

int getNumberOfRepresentations () const
 Returns the number representations in the view. More...

int getNumberOfVisibleRepresentations () const

int getNumberOfVisibleDataRepresentations () const

pqRepresentationgetRepresentation (int index) const
 Returns the representation for the specified index where (index < getNumberOfRepresentations()). More...

QList< pqRepresentation * > getRepresentations () const
 Returns a list of representations in this view. More...

bool canDisplay (pqOutputPort *opPort) const
 This method returns is any pqPipelineSource can be displayed in this view. More...

- Public Member Functions inherited from pqProxy
 pqProxy (const QString &group, const QString &name, vtkSMProxy *proxy, pqServer *server, QObject *parent=nullptr)

 ~pqProxy () override

pqServergetServer () const
 Get the server on which this proxy exists. More...

void rename (const QString &newname)
 This is a convenience method. More...

const QString & getSMName ()
 Get the name with which this proxy is registered on the server manager. More...

const QString & getSMGroup ()

vtkSMProxygetProxy () const
 Get the vtkSMProxy this object stands for. More...

ModifiedState modifiedState () const
 Gets whether or not the source has been modified. More...

void setModifiedState (ModifiedState modified)
 Sets whether or not the source has been modified. More...

vtkPVXMLElementgetHints () const
 Returns the hints for this proxy, if any. More...

QList< vtkSMProxy * > getHelperProxies () const
 Returns a list of all helper proxies. More...

QList< vtkSMProxy * > getHelperProxies (const QString &key) const
 Returns a list of all the helper proxies added with a given key. More...

QList< QString > getHelperKeys () const
 Returns the keys for helper proxies. More...

virtual void addHelperProxy (const QString &key, vtkSMProxy *)
 Concept of helper proxies: A pqProxy is created for every important vtkSMProxy registered. More...

void removeHelperProxy (const QString &key, vtkSMProxy *)

void updateHelperProxies () const
 Updates the internal datastructures using the proxies currently registered under the group that would be used for helper proxies. More...

vtkSMSessionProxyManagerproxyManager () const
 Returns the proxy manager by calling this->getProxy()->GetProxyManager();. More...

bool userModifiedSMName ()
 Return whether or not the user has modified the GUI name of the source. More...

- Public Member Functions inherited from pqServerManagerModelItem
 pqServerManagerModelItem (QObject *parent=nullptr)

 ~pqServerManagerModelItem () override


Protected Member Functions

 pqView (const QString &type, const QString &group, const QString &name, vtkSMViewProxy *view, pqServer *server, QObject *parent=nullptr)
 Constructor: type :- view type. More...

void initialize () override
 Use this method to initialize the pqObject state using the underlying vtkSMProxy. More...

virtual QWidget * createWidget ()=0
 Subclasses must override this method to create a widget for the view. More...

- Protected Member Functions inherited from pqProxy
void setSMName (const QString &new_name)
 Make this pqProxy take on a new identity. More...

virtual void addInternalHelperProxy (const QString &key, vtkSMProxy *) const

virtual void removeInternalHelperProxy (const QString &key, vtkSMProxy *) const

- Protected Member Functions inherited from pqServerManagerModelItem
vtkEventQtSlotConnectgetConnector ()
 All subclasses generally need some vtkEventQtSlotConnect instance to connect to VTK events. More...


Additional Inherited Members

- Static Public Member Functions inherited from pqProxy
static pqProxyfindProxyWithHelper (vtkSMProxy *aproxy, QString &key)
 Returns a pqProxy instance, of any, whose helper proxy is the aproxy. More...

static std::string rstToHtml (const char *rstStr)
 convert proxy documentation from RST to HTML (so that it can be used in Qt) More...

static QString rstToHtml (const QString &rstStr)
 convert proxy documentation from RST to HTML (so that it can be used in Qt) More...

- Protected Slots inherited from pqProxy
void onProxyRegistered (const QString &, const QString &, vtkSMProxy *)

void onProxyUnRegistered (const QString &, const QString &, vtkSMProxy *)


Detailed Description

This is a PQ abstraction of a generic view module.

Subclasses can be specific for different types of view such as render view, histogram view etc.

Definition at line 26 of file pqView.h.

Member Enumeration Documentation

◆ SelectionModifier

Enumerator
PV_SELECTION_DEFAULT
PV_SELECTION_ADDITION
PV_SELECTION_SUBTRACTION
PV_SELECTION_TOGGLE

Definition at line 32 of file pqView.h.

Constructor & Destructor Documentation

◆ ~pqView()

pqView::~pqView ( )
override

◆ pqView()

pqView::pqView ( const QString &  type,
const QString &  group,
const QString &  name,
vtkSMViewProxy view,
pqServer server,
QObject *  parent = nullptr
)
protected

Constructor: type :- view type.

group :- SManager registration group. name :- SManager registration name. view :- View proxy. server:- server on which the proxy is created. parent:- QObject parent.

Member Function Documentation

◆ getViewProxy()

vtkSMViewProxy* pqView::getViewProxy ( ) const

Returns the internal render Module proxy associated with this object.

◆ getClientSideView()

virtual vtkView* pqView::getClientSideView ( ) const
virtual

Return the client-side vtkView encapsulated by this view (if any), or return nullptr.

◆ widget()

QWidget* pqView::widget ( )

Return a widget associated with this view.

Every view in ParaView Qt application must be able to render itself in a QWidget. The first time this method is called, this will call pqView::createWidget(). Subclasses createWidget() to create a QWidget for the view. This may return nullptr if the view doesn't have QWidget associated with it (which is rare, if impossible) or the QWidget was previously created but since has been destroyed due to Qt cleanup.

◆ supportsUndo()

virtual bool pqView::supportsUndo ( ) const
inlinevirtual

Returns if this view module can support undo/redo.

Returns false by default. Subclassess must override if that's not the case. View modules that support undo must fire all undo related signals defined by this class.

Reimplemented in pqRenderView.

Definition at line 70 of file pqView.h.

◆ supportsCapture()

virtual bool pqView::supportsCapture ( ) const
inlinevirtual

Returns if this view module can support image capture.

Returns false by default. Subclassess must override if that's not the case.

Reimplemented in pqRenderView, and pqContextView.

Definition at line 76 of file pqView.h.

◆ getViewType()

QString pqView::getViewType ( ) const
inline

Returns the type of this view module.

Definition at line 81 of file pqView.h.

◆ render

virtual void pqView::render ( )
virtualslot

Request a StillRender on idle.

Multiple calls are collapsed into one.

◆ forceRender

virtual void pqView::forceRender ( )
virtualslot

Forces an immediate render.

◆ cancelPendingRenders

void pqView::cancelPendingRenders ( )
slot

Cancels any pending renders.

◆ undo

virtual void pqView::undo ( )
inlinevirtualslot

Called to undo interaction.

View modules supporting interaction undo must override this method.

Definition at line 103 of file pqView.h.

◆ redo

virtual void pqView::redo ( )
inlinevirtualslot

Called to redo interaction.

View modules supporting interaction undo must override this method.

Definition at line 109 of file pqView.h.

◆ resetDisplay

virtual void pqView::resetDisplay ( bool  closest = false)
inlinevirtualslot

Called to reset the view's display.

For example, reset the camera or zoom level. The default implementation does nothing, but subclasses may override.

Reimplemented in pqContextView, and pqRenderViewBase.

Definition at line 116 of file pqView.h.

◆ canUndo()

virtual bool pqView::canUndo ( ) const
inlinevirtual

Returns true if undo can be done.

Reimplemented in pqRenderView.

Definition at line 122 of file pqView.h.

◆ canRedo()

virtual bool pqView::canRedo ( ) const
inlinevirtual

Returns true if redo can be done.

Reimplemented in pqRenderView.

Definition at line 127 of file pqView.h.

◆ getSize()

virtual QSize pqView::getSize ( )
virtual

Returns the current size of the rendering context.

Default implementation returns the client size of the widget. Subclasses may override to change this behavior.

◆ hasRepresentation()

bool pqView::hasRepresentation ( pqRepresentation repr) const

This method checks if the representation is shown in this view.

◆ getNumberOfRepresentations()

int pqView::getNumberOfRepresentations ( ) const

Returns the number representations in the view.

◆ getNumberOfVisibleRepresentations()

int pqView::getNumberOfVisibleRepresentations ( ) const

◆ getNumberOfVisibleDataRepresentations()

int pqView::getNumberOfVisibleDataRepresentations ( ) const

◆ getRepresentation()

pqRepresentation* pqView::getRepresentation ( int  index) const

Returns the representation for the specified index where (index < getNumberOfRepresentations()).

◆ getRepresentations()

QList<pqRepresentation*> pqView::getRepresentations ( ) const

Returns a list of representations in this view.

◆ canDisplay()

bool pqView::canDisplay ( pqOutputPort opPort) const

This method returns is any pqPipelineSource can be displayed in this view.

NOTE: This is no longer virtual. Simply forwards to vtkSMViewProxy::CanDisplayData().

◆ updateDataEvent

void pqView::updateDataEvent ( )
signal

Fired when the vtkSMViewProxy fires the vtkCommand::UpdateDataEvent The view proxy fires this event at the end of vtkSMViewProxy::Update() when the update executes, not just when the method is called.

◆ representationAdded

void pqView::representationAdded ( pqRepresentation )
signal

Fired after a representation has been added to this view.

◆ representationRemoved

void pqView::representationRemoved ( pqRepresentation )
signal

Fired after a representation has been removed from this view.

◆ beginRender

void pqView::beginRender ( )
signal

Fired when the render module fires a vtkCommand::StartEvent signalling the beginning of rendering.

Subclasses must fire these signals at appropriate times.

◆ endRender

void pqView::endRender ( )
signal

Fired when the render module fires a vtkCommand::EndEvent signalling the end of rendering.

Subclasses must fire these signals at appropriate times.

◆ representationVisibilityChanged

void pqView::representationVisibilityChanged ( pqRepresentation repr,
bool  visible
)
signal

Fired when any representation visibility changes.

◆ canUndoChanged

void pqView::canUndoChanged ( bool  )
signal

Fired when interaction undo stack status changes.

◆ canRedoChanged

void pqView::canRedoChanged ( bool  )
signal

Fired when interaction undo stack status changes.

◆ selected

void pqView::selected ( pqOutputPort opport)
signal

Fired when a selection is made in this view.

opport is the output port for the source that got selected. the selection input on the source proxy for the opport must already have been initialized to a selection source.

◆ picked

void pqView::picked ( pqOutputPort opport)
signal

Fired when a port is picked.

opport is the port that got picked.

◆ beginProgress

void pqView::beginProgress ( )
signal

Fired before doing any actions that may result in progress events that must be reported by the client.

◆ endProgress

void pqView::endProgress ( )
signal

Fired after performing any actions that may result in progress events.

Must match beginProgress() calls.

◆ progress

void pqView::progress ( const QString &  message,
int  percent_progress
)
signal

Fired to notify the current execution progress.

This will be generally have any effect only if beginProgress() has been fired before firing this signal.

◆ multipleSelected

void pqView::multipleSelected ( QList< pqOutputPort *>  opports)
signal

Fired when UseMultipleRepresentationSelection is set to on and selection on multiple representations is made in this view.

opports is a list of opport, and opport is the output port for the source that got selected. the selection input on the source proxy for the opport must already have been initialized to a selection source.

◆ initialize()

void pqView::initialize ( )
overrideprotectedvirtual

Use this method to initialize the pqObject state using the underlying vtkSMProxy.

This needs to be done only once, after the object has been created. Overridden to update the list of representations currently available.

Reimplemented from pqProxy.

◆ createWidget()

virtual QWidget* pqView::createWidget ( )
protectedpure virtual

Subclasses must override this method to create a widget for the view.

Implemented in pqRenderView, pqMultiSliceView, pqContextView, pqRenderViewBase, pqPythonView, pqComparativeContextView, and pqComparativeRenderView.


The documentation for this class was generated from the following file:
