#include <pqRenderView.h>

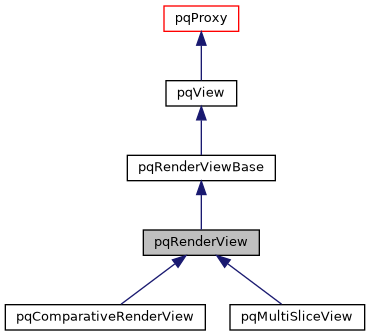

Inheritance diagram for pqRenderView:

[legend]

Collaboration diagram for pqRenderView:

Public Slots
virtual void	setOrientationAxesVisibility (bool visible)

virtual void	setOrientationAxesInteractivity (bool interactive)

virtual void	setOrientationAxesLabelColor (const QColor &)

virtual void	setOrientationAxesOutlineColor (const QColor &)

virtual void	setCenterOfRotation (double x, double y, double z)

virtual void	setCenterOfRotation (double xyz[3])

virtual void	setParallelScale (double scale)

virtual void	setCenterAxesVisibility (bool visible)

virtual void	setResetCenterWithCamera (bool b)
	Get/Set whether resetCamera() resets the center of rotation as well. More...

virtual void	setUseMultipleRepresentationSelection (bool b)
	Set whether selection will be done on multiple representations. More...

virtual void	linkToOtherView ()
	start the link to other view process More...

void	undo () override
	Called to undo interaction. More...

void	redo () override
	Called to redo interaction. More...

virtual void	resetCenterOfRotationIfNeeded ()
	Resets center of rotation if this->ResetCenterWithCamera is true. More...

virtual void	updateInteractionMode (pqOutputPort *opPort)
	Try to provide the best view orientation and interaction mode. More...

Public Slots inherited from pqView
virtual void	render ()
	Request a StillRender on idle. More...

virtual void	forceRender ()
	Forces an immediate render. More...

void	cancelPendingRenders ()
	Cancels any pending renders. More...

virtual void	undo ()
	Called to undo interaction. More...

virtual void	redo ()
	Called to redo interaction. More...

Signals
void	updateInteractionMode (int mode)

Signals inherited from pqView
void	updateDataEvent ()
	Fired when the vtkSMViewProxy fires the vtkCommand::UpdateDataEvent The view proxy fires this event at the end of vtkSMViewProxy::Update() when the update executes, not just when the method is called. More...

void	representationAdded (pqRepresentation *)
	Fired after a representation has been added to this view. More...

void	representationRemoved (pqRepresentation *)
	Fired after a representation has been removed from this view. More...

void	beginRender ()
	Fired when the render module fires a vtkCommand::StartEvent signalling the beginning of rendering. More...

void	endRender ()
	Fired when the render module fires a vtkCommand::EndEvent signalling the end of rendering. More...

void	representationVisibilityChanged (pqRepresentation *repr, bool visible)
	Fired when any representation visibility changes. More...

void	canUndoChanged (bool)
	Fired when interaction undo stack status changes. More...

void	canRedoChanged (bool)
	Fired when interaction undo stack status changes. More...

void	selected (pqOutputPort *opport)
	Fired when a selection is made in this view. More...

void	picked (pqOutputPort *opport)
	Fired when a port is picked. More...

void	beginProgress ()
	Fired before doing any actions that may result in progress events that must be reported by the client. More...

void	endProgress ()
	Fired after performing any actions that may result in progress events. More...

void	progress (const QString &message, int percent_progress)
	Fired to notify the current execution progress. More...

void	multipleSelected (QList< pqOutputPort *> opports)
	Fired when UseMultipleRepresentationSelection is set to on and selection on multiple representations is made in this view. More...

Signals inherited from pqProxy
void	nameChanged (pqServerManagerModelItem *)
	Fired when the name of the proxy is changed. More...

void	modifiedStateChanged (pqServerManagerModelItem *)
	Fired when the modified status changes for the proxy. More...

Public Member Functions
	pqRenderView (const QString &group, const QString &name, vtkSMViewProxy renModule, pqServer server, QObject *parent=nullptr)

	pqRenderView (const QString &tname, const QString &group, const QString &name, vtkSMViewProxy renModule, pqServer server, QObject *parent=nullptr)

	~pqRenderView () override

virtual vtkSMRenderViewProxy *	getRenderViewProxy () const
	Returns the render view proxy associated with this object. More...

void	resetCamera (bool closest=false, double offsetRatio=0.9) override
	Resets the camera to include all visible data. More...

virtual void	resetCenterOfRotation ()
	Resets the center of rotation to the focal point. More...

virtual void	resetParallelScale ()
	Resets the parallel scale which is used for a parallel projection. More...

virtual bool	getOrientationAxesVisibility () const
	Get if the orientation axes is visible. More...

virtual bool	getOrientationAxesInteractivity () const
	Get if the orientation axes is interactive. More...

virtual QColor	getOrientationAxesLabelColor () const
	Get orientation axes label color. More...

virtual QColor	getOrientationAxesOutlineColor () const
	Get orientation axes outline color. More...

virtual bool	getResetCenterWithCamera () const
	Get whether resetCamera() resets the center of rotation as well. More...

virtual bool	getUseMultipleRepresentationSelection () const
	Get whether selection will be done on multiple representations. More...

virtual bool	getCenterAxesVisibility () const
	Get center axes visibility. More...

virtual void	getCenterOfRotation (double center[3]) const
	Get the current center of rotation. More...

bool	supportsUndo () const override
	Returns if this view module can support undo/redo. More...

bool	supportsCapture () const override
	Returns if this view module can support image capture. More...

virtual void	clearUndoStack ()
	Clears interaction undo stack of this view (and all linked views, if any). More...

virtual void	resetViewDirection (double look_x, double look_y, double look_z, double up_x, double up_y, double up_z)
	Reset/Adjust camera view direction. More...

virtual void	adjustView (const int &adjustType, const double &angle)

virtual void	adjustAzimuth (const double &value)

virtual void	adjustElevation (const double &value)

virtual void	adjustRoll (const double &value)

virtual void	adjustZoom (const double &value)

virtual void	applyIsometricView ()

virtual void	resetViewDirectionToPositiveX ()

virtual void	resetViewDirectionToNegativeX ()

virtual void	resetViewDirectionToPositiveY ()

virtual void	resetViewDirectionToNegativeY ()

virtual void	resetViewDirectionToPositiveZ ()

virtual void	resetViewDirectionToNegativeZ ()

virtual pqDataRepresentation *	pick (int pos[2])
	Picks the representation at the given position. More...

virtual pqDataRepresentation *	pickBlock (int pos[2], unsigned int &flatIndex, int &rank)
	Picks the representation at the given position. More...

virtual void	selectBlock (int rectangle[4], int selectionModifier=pqView::PV_SELECTION_DEFAULT)
	Creates a "block" selection given the rectangle in display coordinates. More...


bool	canUndo () const override
	Returns if the view module can undo/redo interaction given the current state of the interaction undo stack. More...

bool	canRedo () const override
	Returns if the view module can undo/redo interaction given the current state of the interaction undo stack. More...


virtual void	linkUndoStack (pqRenderView *other)
	For linking of interaction undo stacks. More...

virtual void	unlinkUndoStack (pqRenderView *other)
	For linking of interaction undo stacks. More...


virtual void	setCursor (const QCursor &)
	Let internal class handle which internal widget should change its cursor This is usually used for selection and in case of QuadView/SliceView which contains an aggregation of QWidget, we don't necessary want all of them to share the same cursor. More...

virtual QCursor	cursor ()
	Let internal class handle which internal widget should change its cursor This is usually used for selection and in case of QuadView/SliceView which contains an aggregation of QWidget, we don't necessary want all of them to share the same cursor. More...


void	setCursorVisible (bool visible)
	Set / get the cursor visibility when the mouse hovers the widget associated with this view. More...

bool	cursorVisible ()
	Set / get the cursor visibility when the mouse hovers the widget associated with this view. More...


virtual void	selectCellsOnSurface (int rectangle[4], int selectionModifier=pqView::PV_SELECTION_DEFAULT, const char *array=nullptr)

virtual void	selectPointsOnSurface (int rectangle[4], int selectionModifier=pqView::PV_SELECTION_DEFAULT, const char *array=nullptr)


virtual void	selectFrustumCells (int rectangle[4], int selectionModifier=pqView::PV_SELECTION_DEFAULT)

virtual void	selectFrustumPoints (int rectangle[4], int selectionModifier=pqView::PV_SELECTION_DEFAULT)

virtual void	selectFrustumBlocks (int rectangle[4], int selectionModifier=pqView::PV_SELECTION_DEFAULT)


virtual void	selectPolygonPoints (vtkIntArray *polygon, int selectionModifier=pqView::PV_SELECTION_DEFAULT)
	Creates a new surface selection given the polygon in display coordinates. More...

virtual void	selectPolygonCells (vtkIntArray *polygon, int selectionModifier=pqView::PV_SELECTION_DEFAULT)
	Creates a new surface selection given the polygon in display coordinates. More...

Public Member Functions inherited from pqRenderViewBase
	~pqRenderViewBase () override

void	resetDisplay (bool closest=false) override
	Called to reset the view's display. More...

Public Member Functions inherited from pqView
	~pqView () override

vtkSMViewProxy *	getViewProxy () const
	Returns the internal render Module proxy associated with this object. More...

virtual vtkView *	getClientSideView () const
	Return the client-side vtkView encapsulated by this view (if any), or return nullptr. More...

QWidget *	widget ()
	Return a widget associated with this view. More...

QString	getViewType () const
	Returns the type of this view module. More...

virtual QSize	getSize ()
	Returns the current size of the rendering context. More...

bool	hasRepresentation (pqRepresentation *repr) const
	This method checks if the representation is shown in this view. More...

int	getNumberOfRepresentations () const
	Returns the number representations in the view. More...

int	getNumberOfVisibleRepresentations () const

int	getNumberOfVisibleDataRepresentations () const

pqRepresentation *	getRepresentation (int index) const
	Returns the representation for the specified index where (index < getNumberOfRepresentations()). More...

QList< pqRepresentation * >	getRepresentations () const
	Returns a list of representations in this view. More...

bool	canDisplay (pqOutputPort *opPort) const
	This method returns is any pqPipelineSource can be displayed in this view. More...

Public Member Functions inherited from pqProxy
	pqProxy (const QString &group, const QString &name, vtkSMProxy proxy, pqServer server, QObject *parent=nullptr)

	~pqProxy () override

pqServer *	getServer () const
	Get the server on which this proxy exists. More...

void	rename (const QString &newname)
	This is a convenience method. More...

const QString &	getSMName ()
	Get the name with which this proxy is registered on the server manager. More...

const QString &	getSMGroup ()

vtkSMProxy *	getProxy () const
	Get the vtkSMProxy this object stands for. More...

ModifiedState	modifiedState () const
	Gets whether or not the source has been modified. More...

void	setModifiedState (ModifiedState modified)
	Sets whether or not the source has been modified. More...

vtkPVXMLElement *	getHints () const
	Returns the hints for this proxy, if any. More...

QList< vtkSMProxy * >	getHelperProxies () const
	Returns a list of all helper proxies. More...

QList< vtkSMProxy * >	getHelperProxies (const QString &key) const
	Returns a list of all the helper proxies added with a given key. More...

QList< QString >	getHelperKeys () const
	Returns the keys for helper proxies. More...

virtual void	addHelperProxy (const QString &key, vtkSMProxy *)
	Concept of helper proxies: A pqProxy is created for every important vtkSMProxy registered. More...

void	removeHelperProxy (const QString &key, vtkSMProxy *)

void	updateHelperProxies () const
	Updates the internal datastructures using the proxies currently registered under the group that would be used for helper proxies. More...

vtkSMSessionProxyManager *	proxyManager () const
	Returns the proxy manager by calling this->getProxy()->GetProxyManager();. More...

bool	userModifiedSMName ()
	Return whether or not the user has modified the GUI name of the source. More...

Public Member Functions inherited from pqServerManagerModelItem
	pqServerManagerModelItem (QObject *parent=nullptr)

	~pqServerManagerModelItem () override

Static Public Member Functions
static QString	renderViewType ()

Static Public Member Functions inherited from pqProxy
static pqProxy *	findProxyWithHelper (vtkSMProxy *aproxy, QString &key)
	Returns a pqProxy instance, of any, whose helper proxy is the aproxy. More...

static std::string	rstToHtml (const char *rstStr)
	convert proxy documentation from RST to HTML (so that it can be used in Qt) More...

static QString	rstToHtml (const QString &rstStr)
	convert proxy documentation from RST to HTML (so that it can be used in Qt) More...

Protected Slots
virtual void	onInteractionModeChange ()
	Called when VTK event get trigger to notify that the interaction mode has changed. More...

virtual void	onGenericFilmicPresetsChange ()
	Called when VTK event get trigger to notify that the generic filmic presets has changed. More...

virtual void	onResetCameraEvent ()

virtual void	onUndoStackChanged ()
	Called when undo stack changes. More...

Protected Slots inherited from pqRenderViewBase
virtual void	initializeAfterObjectsCreated ()

void	beginDelayInteractiveRender ()
	Triggered by DelayNonInteractiveRenderEvent. More...

void	endDelayInteractiveRender ()

void	updateStatusMessage ()
	Triggered by internal timer to update the status bar message. More...

Protected Slots inherited from pqProxy
void	onProxyRegistered (const QString &, const QString &, vtkSMProxy *)

void	onProxyUnRegistered (const QString &, const QString &, vtkSMProxy *)

Protected Member Functions
virtual void	fakeUndoRedo (bool redo, bool self)
	Updates undo stack without actually performing the undo/redo actions. More...

virtual void	fakeInteraction (bool start)
	Updates undo stack of all linked views to record a programmatic change in camera as a interaction. More...

QWidget *	createWidget () override
	Creates a new instance of the QWidget subclass to be used to show this view. More...

void	initialize () override
	Overridden to initialize the interaction undo/redo stack. More...

Protected Member Functions inherited from pqRenderViewBase
	pqRenderViewBase (const QString &type, const QString &group, const QString &name, vtkSMViewProxy renModule, pqServer server, QObject *parent=nullptr)

bool	eventFilter (QObject caller, QEvent e) override
	Overridden to popup the context menu, if some actions have been added using addMenuAction. More...

QWidget *	createWidget () override
	Creates a new instance of the QWidget subclass to be used to show this view. More...

void	initialize () override
	Use this method to initialize the pqObject state using the underlying vtkSMProxy. More...

Protected Member Functions inherited from pqView
	pqView (const QString &type, const QString &group, const QString &name, vtkSMViewProxy view, pqServer server, QObject *parent=nullptr)
	Constructor: `type` :- view type. More...

void	initialize () override
	Use this method to initialize the pqObject state using the underlying vtkSMProxy. More...

Protected Member Functions inherited from pqProxy
void	setSMName (const QString &new_name)
	Make this pqProxy take on a new identity. More...

virtual void	addInternalHelperProxy (const QString &key, vtkSMProxy *) const

virtual void	removeInternalHelperProxy (const QString &key, vtkSMProxy *) const

Protected Member Functions inherited from pqServerManagerModelItem
vtkEventQtSlotConnect *	getConnector ()
	All subclasses generally need some vtkEventQtSlotConnect instance to connect to VTK events. More...

Protected Attributes
bool	ResetCenterWithCamera

bool	UseMultipleRepresentationSelection

Additional Inherited Members
Public Types inherited from pqView
enum	SelectionModifier { PV_SELECTION_DEFAULT = 0, PV_SELECTION_ADDITION, PV_SELECTION_SUBTRACTION, PV_SELECTION_TOGGLE }

Public Types inherited from pqProxy
enum	ModifiedState { UNINITIALIZED, MODIFIED, UNMODIFIED }
	The modification state of this proxy. More...

Detailed Description

Definition at line 18 of file pqRenderView.h.

Constructor & Destructor Documentation

◆ pqRenderView() [1/2]

pqRenderView::pqRenderView	(	const QString &	group,
		const QString &	name,
		vtkSMViewProxy *	renModule,
		pqServer *	server,
		QObject *	parent = `nullptr`
	)

◆ pqRenderView() [2/2]

pqRenderView::pqRenderView	(	const QString &	tname,
		const QString &	group,
		const QString &	name,
		vtkSMViewProxy *	renModule,
		pqServer *	server,
		QObject *	parent = `nullptr`
	)

◆ ~pqRenderView()

pqRenderView::~pqRenderView ( )

override

Member Function Documentation

◆ renderViewType()

static QString pqRenderView::renderViewType ( )

inlinestatic

Definition at line 24 of file pqRenderView.h.

◆ getRenderViewProxy()

virtual vtkSMRenderViewProxy* pqRenderView::getRenderViewProxy ( ) const

virtual

Returns the render view proxy associated with this object.

Reimplemented in pqComparativeRenderView.

◆ resetCamera()

void pqRenderView::resetCamera	(	bool	closest = `false`,
		double	offsetRatio = `0.9`
	)

overridevirtual

Resets the camera to include all visible data.

It is essential to call this resetCamera, to ensure that the reset camera action gets pushed on the interaction undo stack.

OffsetRatio can be used to add a zoom offset (only applicable when closest is true).

Implements pqRenderViewBase.

◆ resetCenterOfRotation()

virtual void pqRenderView::resetCenterOfRotation ( )

virtual

Resets the center of rotation to the focal point.

◆ resetParallelScale()

virtual void pqRenderView::resetParallelScale ( )

virtual

Resets the parallel scale which is used for a parallel projection.

◆ getOrientationAxesVisibility()

virtual bool pqRenderView::getOrientationAxesVisibility ( ) const

virtual

Get if the orientation axes is visible.

◆ getOrientationAxesInteractivity()

virtual bool pqRenderView::getOrientationAxesInteractivity ( ) const

virtual

Get if the orientation axes is interactive.

◆ getOrientationAxesLabelColor()

virtual QColor pqRenderView::getOrientationAxesLabelColor ( ) const

virtual

Get orientation axes label color.

◆ getOrientationAxesOutlineColor()

virtual QColor pqRenderView::getOrientationAxesOutlineColor ( ) const

virtual

Get orientation axes outline color.

◆ getResetCenterWithCamera()

virtual bool pqRenderView::getResetCenterWithCamera ( ) const

inlinevirtual

Get whether resetCamera() resets the center of rotation as well.

Definition at line 89 of file pqRenderView.h.

◆ getUseMultipleRepresentationSelection()

virtual bool pqRenderView::getUseMultipleRepresentationSelection ( ) const

inlinevirtual

Get whether selection will be done on multiple representations.

Definition at line 94 of file pqRenderView.h.

◆ getCenterAxesVisibility()

virtual bool pqRenderView::getCenterAxesVisibility ( ) const

virtual

Get center axes visibility.

◆ getCenterOfRotation()

virtual void pqRenderView::getCenterOfRotation ( double center[3] ) const

virtual

Get the current center of rotation.

◆ supportsUndo()

bool pqRenderView::supportsUndo ( ) const

inlineoverridevirtual

Returns if this view module can support undo/redo.

Returns false by default. Subclassess must override if that's not the case.

Reimplemented from pqView.

Definition at line 113 of file pqRenderView.h.

◆ canUndo()

bool pqRenderView::canUndo ( ) const

overridevirtual

Returns if the view module can undo/redo interaction given the current state of the interaction undo stack.

Reimplemented from pqView.

◆ canRedo()

bool pqRenderView::canRedo ( ) const

overridevirtual

Returns if the view module can undo/redo interaction given the current state of the interaction undo stack.

Reimplemented from pqView.

◆ supportsCapture()

bool pqRenderView::supportsCapture ( ) const

inlineoverridevirtual

Returns if this view module can support image capture.

Returns false by default. Subclassess must override if that's not the case.

Reimplemented from pqView.

Definition at line 128 of file pqRenderView.h.

◆ linkUndoStack()

virtual void pqRenderView::linkUndoStack ( pqRenderView * other )

virtual

For linking of interaction undo stacks.

This method is used by pqLinksModel to link interaction undo stack for linked render views.

◆ unlinkUndoStack()

virtual void pqRenderView::unlinkUndoStack ( pqRenderView * other )

virtual

For linking of interaction undo stacks.

This method is used by pqLinksModel to link interaction undo stack for linked render views.

◆ clearUndoStack()

virtual void pqRenderView::clearUndoStack ( )

virtual

Clears interaction undo stack of this view (and all linked views, if any).

◆ resetViewDirection()

virtual void pqRenderView::resetViewDirection	(	double	look_x,
		double	look_y,
		double	look_z,
		double	up_x,
		double	up_y,
		double	up_z
	)

virtual

Reset/Adjust camera view direction.

◆ adjustView()

virtual void pqRenderView::adjustView	(	const int &	adjustType,
		const double &	angle
	)

virtual

◆ adjustAzimuth()

virtual void pqRenderView::adjustAzimuth ( const double & value )

virtual

◆ adjustElevation()

virtual void pqRenderView::adjustElevation ( const double & value )

virtual

◆ adjustRoll()

virtual void pqRenderView::adjustRoll ( const double & value )

virtual

◆ adjustZoom()

virtual void pqRenderView::adjustZoom ( const double & value )

virtual

◆ applyIsometricView()

virtual void pqRenderView::applyIsometricView ( )

virtual

◆ resetViewDirectionToPositiveX()

virtual void pqRenderView::resetViewDirectionToPositiveX ( )

virtual

◆ resetViewDirectionToNegativeX()

virtual void pqRenderView::resetViewDirectionToNegativeX ( )

virtual

◆ resetViewDirectionToPositiveY()

virtual void pqRenderView::resetViewDirectionToPositiveY ( )

virtual

◆ resetViewDirectionToNegativeY()

virtual void pqRenderView::resetViewDirectionToNegativeY ( )

virtual

◆ resetViewDirectionToPositiveZ()

virtual void pqRenderView::resetViewDirectionToPositiveZ ( )

virtual

◆ resetViewDirectionToNegativeZ()

virtual void pqRenderView::resetViewDirectionToNegativeZ ( )

virtual

◆ setCursor()

virtual void pqRenderView::setCursor ( const QCursor & )

virtual

Let internal class handle which internal widget should change its cursor This is usually used for selection and in case of QuadView/SliceView which contains an aggregation of QWidget, we don't necessary want all of them to share the same cursor.

Reimplemented in pqMultiSliceView.

◆ cursor()

virtual QCursor pqRenderView::cursor ( )

virtual

Let internal class handle which internal widget should change its cursor This is usually used for selection and in case of QuadView/SliceView which contains an aggregation of QWidget, we don't necessary want all of them to share the same cursor.

◆ setCursorVisible()

void pqRenderView::setCursorVisible ( bool visible )

Set / get the cursor visibility when the mouse hovers the widget associated with this view.

◆ cursorVisible()

bool pqRenderView::cursorVisible ( )

Set / get the cursor visibility when the mouse hovers the widget associated with this view.

◆ selectCellsOnSurface()

virtual void pqRenderView::selectCellsOnSurface	(	int	rectangle[4],
		int	selectionModifier = `pqView::PV_SELECTION_DEFAULT`,
		const char *	array = `nullptr`
	)

virtual

◆ selectPointsOnSurface()

virtual void pqRenderView::selectPointsOnSurface	(	int	rectangle[4],
		int	selectionModifier = `pqView::PV_SELECTION_DEFAULT`,
		const char *	array = `nullptr`
	)

virtual

◆ pick()

virtual pqDataRepresentation* pqRenderView::pick ( int pos[2] )

virtual

Picks the representation at the given position.

This will result in firing the picked(pqOutputPort*) signal on successful pick.

◆ pickBlock()

virtual pqDataRepresentation* pqRenderView::pickBlock	(	int	pos[2],
		unsigned int &	flatIndex,
		int &	rank
	)

virtual

Picks the representation at the given position.

Furthermore, if the picked representation is a multi-block data set the picked block will be returned in the flatIndex variable.

With introduction on vtkPartitionedDataSetCollection and vtkPartitionedDataSet, flatIndex is no longer consistent across ranks and hence rank is also returned. Unless dealing with these data types, rank can be ignored.

◆ selectFrustumCells()

virtual void pqRenderView::selectFrustumCells	(	int	rectangle[4],
		int	selectionModifier = `pqView::PV_SELECTION_DEFAULT`
	)

virtual

◆ selectFrustumPoints()

virtual void pqRenderView::selectFrustumPoints	(	int	rectangle[4],
		int	selectionModifier = `pqView::PV_SELECTION_DEFAULT`
	)

virtual

◆ selectFrustumBlocks()

virtual void pqRenderView::selectFrustumBlocks	(	int	rectangle[4],
		int	selectionModifier = `pqView::PV_SELECTION_DEFAULT`
	)

virtual

◆ selectBlock()

virtual void pqRenderView::selectBlock	(	int	rectangle[4],
		int	selectionModifier = `pqView::PV_SELECTION_DEFAULT`
	)

virtual

Creates a "block" selection given the rectangle in display coordinates.

block selection is selection of a block in a composite dataset.

◆ selectPolygonPoints()

virtual void pqRenderView::selectPolygonPoints	(	vtkIntArray *	polygon,
		int	selectionModifier = `pqView::PV_SELECTION_DEFAULT`
	)

virtual

Creates a new surface selection given the polygon in display coordinates.

◆ selectPolygonCells()

virtual void pqRenderView::selectPolygonCells	(	vtkIntArray *	polygon,
		int	selectionModifier = `pqView::PV_SELECTION_DEFAULT`
	)

virtual

Creates a new surface selection given the polygon in display coordinates.

◆ updateInteractionMode [1/2]

void pqRenderView::updateInteractionMode ( int mode )

signal

◆ setOrientationAxesVisibility

virtual void pqRenderView::setOrientationAxesVisibility ( bool visible )

virtualslot

◆ setOrientationAxesInteractivity

virtual void pqRenderView::setOrientationAxesInteractivity ( bool interactive )

virtualslot

◆ setOrientationAxesLabelColor

virtual void pqRenderView::setOrientationAxesLabelColor ( const QColor & )

virtualslot

◆ setOrientationAxesOutlineColor

virtual void pqRenderView::setOrientationAxesOutlineColor ( const QColor & )

virtualslot

◆ setCenterOfRotation [1/2]

virtual void pqRenderView::setCenterOfRotation	(	double	x,
		double	y,
		double	z
	)

virtualslot

◆ setCenterOfRotation [2/2]

virtual void pqRenderView::setCenterOfRotation ( double xyz[3] )

inlinevirtualslot

Definition at line 257 of file pqRenderView.h.

◆ setParallelScale

virtual void pqRenderView::setParallelScale ( double scale )

virtualslot

◆ setCenterAxesVisibility

virtual void pqRenderView::setCenterAxesVisibility ( bool visible )

virtualslot

◆ setResetCenterWithCamera

virtual void pqRenderView::setResetCenterWithCamera ( bool b )

inlinevirtualslot

Get/Set whether resetCamera() resets the center of rotation as well.

Definition at line 272 of file pqRenderView.h.

◆ setUseMultipleRepresentationSelection

virtual void pqRenderView::setUseMultipleRepresentationSelection ( bool b )

inlinevirtualslot

Set whether selection will be done on multiple representations.

Definition at line 277 of file pqRenderView.h.

◆ linkToOtherView

virtual void pqRenderView::linkToOtherView ( )

virtualslot

start the link to other view process

◆ undo

void pqRenderView::undo ( )

overrideslot

Called to undo interaction.

View modules supporting interaction undo must override this method.

◆ redo

void pqRenderView::redo ( )

overrideslot

Called to redo interaction.

View modules supporting interaction undo must override this method.

◆ resetCenterOfRotationIfNeeded

virtual void pqRenderView::resetCenterOfRotationIfNeeded ( )

inlinevirtualslot

Resets center of rotation if this->ResetCenterWithCamera is true.

Definition at line 302 of file pqRenderView.h.

◆ updateInteractionMode [2/2]

virtual void pqRenderView::updateInteractionMode ( pqOutputPort * opPort )

virtualslot

Try to provide the best view orientation and interaction mode.

◆ onInteractionModeChange

virtual void pqRenderView::onInteractionModeChange ( )

protectedvirtualslot

Called when VTK event get trigger to notify that the interaction mode has changed.

◆ onGenericFilmicPresetsChange

virtual void pqRenderView::onGenericFilmicPresetsChange ( )

protectedvirtualslot

Called when VTK event get trigger to notify that the generic filmic presets has changed.

◆ onResetCameraEvent

virtual void pqRenderView::onResetCameraEvent ( )

protectedvirtualslot

◆ onUndoStackChanged

virtual void pqRenderView::onUndoStackChanged ( )

protectedvirtualslot

Called when undo stack changes.

We fires appropriate undo signals as required by pqView.

◆ fakeUndoRedo()

virtual void pqRenderView::fakeUndoRedo	(	bool	redo,
		bool	self
	)

protectedvirtual

Updates undo stack without actually performing the undo/redo actions.

◆ fakeInteraction()

virtual void pqRenderView::fakeInteraction ( bool start )

protectedvirtual

Updates undo stack of all linked views to record a programmatic change in camera as a interaction.

Must be called with start=true before the change and with start=false after the change.

◆ createWidget()

QWidget* pqRenderView::createWidget ( )

overrideprotectedvirtual

Creates a new instance of the QWidget subclass to be used to show this view.

Default implementation creates a pqQVTKWidget

Implements pqView.

◆ initialize()

void pqRenderView::initialize ( )

overrideprotectedvirtual

Overridden to initialize the interaction undo/redo stack.

Reimplemented from pqProxy.

Member Data Documentation

◆ ResetCenterWithCamera

bool pqRenderView::ResetCenterWithCamera

protected

Definition at line 355 of file pqRenderView.h.

◆ UseMultipleRepresentationSelection

bool pqRenderView::UseMultipleRepresentationSelection

protected

Definition at line 358 of file pqRenderView.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Qt/Core/pqRenderView.h

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ pqRenderView() [1/2]

◆ pqRenderView() [2/2]

◆ ~pqRenderView()

Member Function Documentation

◆ renderViewType()

◆ getRenderViewProxy()

◆ resetCamera()

◆ resetCenterOfRotation()

◆ resetParallelScale()

◆ getOrientationAxesVisibility()

◆ getOrientationAxesInteractivity()

◆ getOrientationAxesLabelColor()

◆ getOrientationAxesOutlineColor()

◆ getResetCenterWithCamera()

◆ getUseMultipleRepresentationSelection()

◆ getCenterAxesVisibility()

◆ getCenterOfRotation()

◆ supportsUndo()

◆ canUndo()

◆ canRedo()

◆ supportsCapture()

◆ linkUndoStack()

◆ unlinkUndoStack()

◆ clearUndoStack()

◆ resetViewDirection()

◆ adjustView()

◆ adjustAzimuth()

◆ adjustElevation()

◆ adjustRoll()

◆ adjustZoom()

◆ applyIsometricView()

◆ resetViewDirectionToPositiveX()

◆ resetViewDirectionToNegativeX()

◆ resetViewDirectionToPositiveY()

◆ resetViewDirectionToNegativeY()

◆ resetViewDirectionToPositiveZ()

◆ resetViewDirectionToNegativeZ()

◆ setCursor()

◆ cursor()

◆ setCursorVisible()

◆ cursorVisible()

◆ selectCellsOnSurface()

◆ selectPointsOnSurface()

◆ pick()

◆ pickBlock()

◆ selectFrustumCells()

◆ selectFrustumPoints()

◆ selectFrustumBlocks()

◆ selectBlock()

◆ selectPolygonPoints()

◆ selectPolygonCells()

◆ updateInteractionMode [1/2]

◆ setOrientationAxesVisibility

◆ setOrientationAxesInteractivity

◆ setOrientationAxesLabelColor

◆ setOrientationAxesOutlineColor

◆ setCenterOfRotation [1/2]

◆ setCenterOfRotation [2/2]

◆ setParallelScale

◆ setCenterAxesVisibility

◆ setResetCenterWithCamera

◆ setUseMultipleRepresentationSelection

◆ linkToOtherView

◆ undo

◆ redo

◆ resetCenterOfRotationIfNeeded

◆ updateInteractionMode [2/2]

◆ onInteractionModeChange

◆ onGenericFilmicPresetsChange

◆ onResetCameraEvent
