This class represents any registered Server Manager proxy. More...

#include <pqProxy.h>

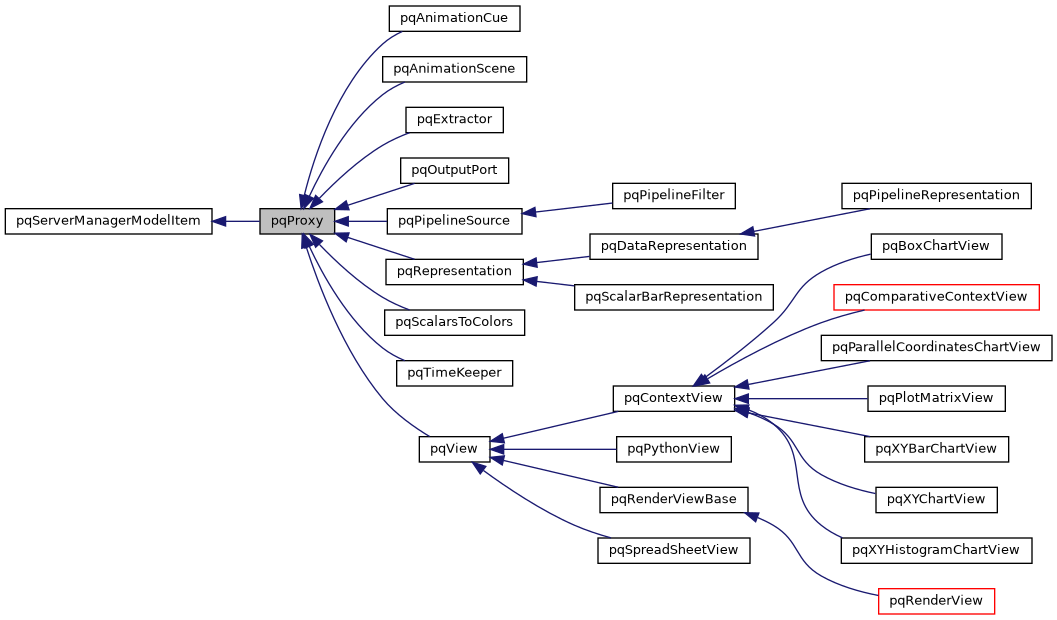

Inheritance diagram for pqProxy:

[legend]

Collaboration diagram for pqProxy:

Public Types
enum	ModifiedState { UNINITIALIZED, MODIFIED, UNMODIFIED }
	The modification state of this proxy. More...

Signals
void	nameChanged (pqServerManagerModelItem *)
	Fired when the name of the proxy is changed. More...

void	modifiedStateChanged (pqServerManagerModelItem *)
	Fired when the modified status changes for the proxy. More...

Public Member Functions
	pqProxy (const QString &group, const QString &name, vtkSMProxy proxy, pqServer server, QObject *parent=nullptr)

	~pqProxy () override

pqServer *	getServer () const
	Get the server on which this proxy exists. More...

void	rename (const QString &newname)
	This is a convenience method. More...

const QString &	getSMName ()
	Get the name with which this proxy is registered on the server manager. More...

const QString &	getSMGroup ()

vtkSMProxy *	getProxy () const
	Get the vtkSMProxy this object stands for. More...

ModifiedState	modifiedState () const
	Gets whether or not the source has been modified. More...

void	setModifiedState (ModifiedState modified)
	Sets whether or not the source has been modified. More...

vtkPVXMLElement *	getHints () const
	Returns the hints for this proxy, if any. More...

QList< vtkSMProxy * >	getHelperProxies () const
	Returns a list of all helper proxies. More...

QList< vtkSMProxy * >	getHelperProxies (const QString &key) const
	Returns a list of all the helper proxies added with a given key. More...

QList< QString >	getHelperKeys () const
	Returns the keys for helper proxies. More...

virtual void	addHelperProxy (const QString &key, vtkSMProxy *)
	Concept of helper proxies: A pqProxy is created for every important vtkSMProxy registered. More...

void	removeHelperProxy (const QString &key, vtkSMProxy *)

void	updateHelperProxies () const
	Updates the internal datastructures using the proxies currently registered under the group that would be used for helper proxies. More...

vtkSMSessionProxyManager *	proxyManager () const
	Returns the proxy manager by calling this->getProxy()->GetProxyManager();. More...

bool	userModifiedSMName ()
	Return whether or not the user has modified the GUI name of the source. More...

Public Member Functions inherited from pqServerManagerModelItem
	pqServerManagerModelItem (QObject *parent=nullptr)

	~pqServerManagerModelItem () override

Static Public Member Functions
static pqProxy *	findProxyWithHelper (vtkSMProxy *aproxy, QString &key)
	Returns a pqProxy instance, of any, whose helper proxy is the aproxy. More...


static std::string	rstToHtml (const char *rstStr)
	convert proxy documentation from RST to HTML (so that it can be used in Qt) More...

static QString	rstToHtml (const QString &rstStr)
	convert proxy documentation from RST to HTML (so that it can be used in Qt) More...

Protected Slots
void	onProxyRegistered (const QString &, const QString &, vtkSMProxy *)

void	onProxyUnRegistered (const QString &, const QString &, vtkSMProxy *)

Protected Member Functions
void	setSMName (const QString &new_name)
	Make this pqProxy take on a new identity. More...

virtual void	initialize ()

virtual void	addInternalHelperProxy (const QString &key, vtkSMProxy *) const

virtual void	removeInternalHelperProxy (const QString &key, vtkSMProxy *) const

Protected Member Functions inherited from pqServerManagerModelItem
vtkEventQtSlotConnect *	getConnector ()
	All subclasses generally need some vtkEventQtSlotConnect instance to connect to VTK events. More...

Friends
class	pqServerManagerModel

Detailed Description

This class represents any registered Server Manager proxy.

It keeps essential information to locate the proxy as well as additional metadata such as user-specified label.

Definition at line 28 of file pqProxy.h.

Member Enumeration Documentation

◆ ModifiedState

enum pqProxy::ModifiedState

The modification state of this proxy.

Enumerator
UNINITIALIZED
MODIFIED
UNMODIFIED

Definition at line 35 of file pqProxy.h.

Constructor & Destructor Documentation

◆ pqProxy()

pqProxy::pqProxy	(	const QString &	group,
		const QString &	name,
		vtkSMProxy *	proxy,
		pqServer *	server,
		QObject *	parent = `nullptr`
	)

◆ ~pqProxy()

pqProxy::~pqProxy ( )

override

Member Function Documentation

◆ getServer()

pqServer* pqProxy::getServer ( ) const

Get the server on which this proxy exists.

◆ rename()

void pqProxy::rename ( const QString & newname )

This is a convenience method.

It re-registers the underlying proxy with the requested new name under the same group. Then it unregisters the proxy from the group with the old name. This operation is understood as renaming the proxy, since as a consequence, this pqProxy's SMName changes.

◆ getSMName()

const QString& pqProxy::getSMName ( )

Get the name with which this proxy is registered on the server manager.

A proxy can be registered with more than one name on the Server Manager. This is the name/group which this pqProxy stands for.

◆ getSMGroup()

const QString& pqProxy::getSMGroup ( )

◆ getProxy()

vtkSMProxy* pqProxy::getProxy ( ) const

Get the vtkSMProxy this object stands for.

This can never be nullptr. A pqProxy always represents one and only one Server Manager proxy.

◆ modifiedState()

ModifiedState pqProxy::modifiedState ( ) const

inline

Gets whether or not the source has been modified.

Returns: True if the source has been modified.

Definition at line 80 of file pqProxy.h.

◆ setModifiedState()

void pqProxy::setModifiedState ( ModifiedState modified )

Sets whether or not the source has been modified.

Parameters

modified True if the source has been modified.

◆ getHints()

vtkPVXMLElement* pqProxy::getHints ( ) const

Returns the hints for this proxy, if any.

May returns nullptr if no hints are defined.

◆ getHelperProxies() [1/2]

QList<vtkSMProxy*> pqProxy::getHelperProxies ( ) const

Returns a list of all helper proxies.

◆ getHelperProxies() [2/2]

QList<vtkSMProxy*> pqProxy::getHelperProxies ( const QString & key ) const

Returns a list of all the helper proxies added with a given key.

◆ getHelperKeys()

QList<QString> pqProxy::getHelperKeys ( ) const

Returns the keys for helper proxies.

◆ rstToHtml() [1/2]

static std::string pqProxy::rstToHtml ( const char * rstStr )

static

convert proxy documentation from RST to HTML (so that it can be used in Qt)

◆ rstToHtml() [2/2]

static QString pqProxy::rstToHtml ( const QString & rstStr )

static

convert proxy documentation from RST to HTML (so that it can be used in Qt)

◆ addHelperProxy()

virtual void pqProxy::addHelperProxy	(	const QString &	key,
		vtkSMProxy *
	)

virtual

Concept of helper proxies: A pqProxy is created for every important vtkSMProxy registered.

Many a times, there may be other proxies associated with that proxy, eg. lookup table proxies, implicit function proxies may be associated with a filter/source proxy. The GUI can create "associated" proxies and add them as helper proxies. Helper proxies get registered under special groups, so that they are undo/redo-able, and state save-restore-able. The pqProxy makes sure that the helper proxies are unregistered when the main proxy is unregistered.

◆ removeHelperProxy()

void pqProxy::removeHelperProxy	(	const QString &	key,
		vtkSMProxy *
	)

◆ updateHelperProxies()

void pqProxy::updateHelperProxies ( ) const

Updates the internal datastructures using the proxies currently registered under the group that would be used for helper proxies.

This makes it possible to locate helper proxies created from Python.

◆ proxyManager()

vtkSMSessionProxyManager* pqProxy::proxyManager ( ) const

Returns the proxy manager by calling this->getProxy()->GetProxyManager();.

◆ findProxyWithHelper()

static pqProxy* pqProxy::findProxyWithHelper	(	vtkSMProxy *	aproxy,
		QString &	key
	)

static

Returns a pqProxy instance, of any, whose helper proxy is the aproxy.

This is not the fastest implementation, so beware of that. If found, the key is set to the helper key.

◆ userModifiedSMName()

bool pqProxy::userModifiedSMName ( )

inline

Return whether or not the user has modified the GUI name of the source.

This is needed when reading in a dataset with Catalyst channel information so that we can make sure that we don't overwrite any QUI name the user has already modified. The situation where this could happen is if the user loads a file, changes the GUI name, and then hits the Apply button. In this situation we don't want to change the GUI name to the Catalyst channel name but every other situation we do.

Definition at line 159 of file pqProxy.h.

◆ nameChanged

void pqProxy::nameChanged ( pqServerManagerModelItem * )

signal

Fired when the name of the proxy is changed.

◆ modifiedStateChanged

void pqProxy::modifiedStateChanged ( pqServerManagerModelItem * )

signal

Fired when the modified status changes for the proxy.

◆ setSMName()

void pqProxy::setSMName ( const QString & new_name )

protected

Make this pqProxy take on a new identity.

This is following case: Proxy A registered as (gA, nA), then is again registered as (gA, nA2). pqServerManagerModel does not create a new pqProxy for (gA, nA2). However, if (gA, nA) is now unregistered, the same old instance of pqProxy which represented (gA, nA) will now "take on a new identity" and represent proxy (gA, nA2). This method will trigger the nameChanged() signal.

◆ initialize()

virtual void pqProxy::initialize ( )

protectedvirtual

Reimplemented in pqRenderView, pqView, pqDataRepresentation, pqPipelineFilter, pqRenderViewBase, and pqExtractor.

◆ addInternalHelperProxy()

virtual void pqProxy::addInternalHelperProxy	(	const QString &	key,
		vtkSMProxy *
	)		const

protectedvirtual

◆ removeInternalHelperProxy()

virtual void pqProxy::removeInternalHelperProxy	(	const QString &	key,
		vtkSMProxy *
	)		const

protectedvirtual

◆ onProxyRegistered

void pqProxy::onProxyRegistered	(	const QString &	,
		const QString &	,
		vtkSMProxy *
	)

protectedslot

◆ onProxyUnRegistered

void pqProxy::onProxyUnRegistered	(	const QString &	,
		const QString &	,
		vtkSMProxy *
	)

protectedslot

Friends And Related Function Documentation

◆ pqServerManagerModel

friend class pqServerManagerModel

friend

Definition at line 173 of file pqProxy.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Qt/Core/pqProxy.h
