domain to ensure that input has required types of arrays. More...

#include <vtkSMInputArrayDomain.h>

Inheritance diagram for vtkSMInputArrayDomain:

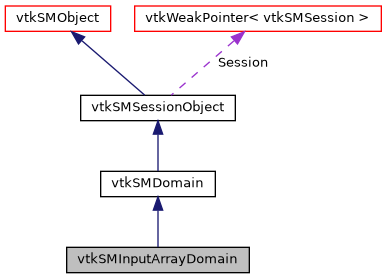

Collaboration diagram for vtkSMInputArrayDomain:

[legend]

Public Types
enum	AttributeTypes { POINT = vtkDataObject::POINT, CELL = vtkDataObject::CELL, FIELD = vtkDataObject::FIELD, ANY_EXCEPT_FIELD = vtkDataObject::POINT_THEN_CELL, VERTEX = vtkDataObject::VERTEX, EDGE = vtkDataObject::EDGE, ROW = vtkDataObject::ROW, ANY = vtkDataObject::NUMBER_OF_ATTRIBUTE_TYPES, NUMBER_OF_ATTRIBUTE_TYPES = ANY + 1 }

typedef vtkSMDomain	Superclass

Public Types inherited from vtkSMDomain
enum	IsInDomainReturnCodes { NOT_APPLICABLE = -1, NOT_IN_DOMAIN = 0, IN_DOMAIN = 1 }
	Return values for `IsInDomain` calls. More...

typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

int	IsInDomain (vtkSMProperty *property) override
	Returns true if the value of the property is in the domain. More...

int	IsInDomain (vtkSMSourceProxy *proxy, unsigned int outputport=0)
	Returns true if input has one or more arrays that match the requirements on the given output port. More...

std::vector< int >	GetAcceptableNumbersOfComponents () const
	Get the AcceptableNumberOfComponents vector Empty or containing a zero means no check. More...

int	IsArrayAcceptable (vtkPVArrayInformation *arrayInfo)
	This method will check if the arrayInfo contain info about an acceptable array, by checking its number of components against this domain acceptable numbers of components. More...


virtual int	GetAttributeType ()
	Get the attribute type. More...

const char *	GetAttributeTypeAsString ()
	Get the attribute type. More...

Public Member Functions inherited from vtkSMDomain
virtual int	IsInDomain (vtkSMProperty *vtkNotUsed(property))
	Is the (unchecked) value of the property in the domain? Overwritten by sub-classes. More...

virtual void	Update (vtkSMProperty *requestingProperty)
	Update self based on the "unchecked" values of all required properties. More...

virtual void	SetAnimationValue (vtkSMProperty *, int vtkNotUsed(index), double vtkNotUsed(value))
	Set the value of an element of a property from the animation editor. More...

virtual int	SetDefaultValues (vtkSMProperty *, bool vtkNotUsed(use_unchecked_values))
	A vtkSMProperty is often defined with a default value in the XML itself. More...

vtkSMProperty *	GetProperty ()
	Provides access to the vtkSMProperty on which this domain is hooked up. More...

virtual unsigned int	GetNumberOfInputConnections (const char *function)
	Helper method to get the number of input connections hence the number of available vtkPVDataInformation from input proxy connected to the required property with the given function. More...

vtkSMProperty *	GetRequiredProperty (const char *function)
	Returns a given required property of the given function. More...

virtual char *	GetXMLName ()
	Assigned by the XML parser. More...

virtual bool	GetIsOptional ()
	When the IsOptional flag is set, IsInDomain() always returns true. More...

virtual vtkPVDataInformation *	GetInputDataInformation (const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

virtual vtkPVDataInformation *	GetInputSubsetDataInformation (unsigned int compositeIndex, const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

Public Member Functions inherited from vtkSMSessionObject
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual void	SetSession (vtkSMSession *)
	Get/Set the session on wihch this object exists. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMInputArrayDomain *	New ()

static int	IsTypeOf (const char *type)

static vtkSMInputArrayDomain *	SafeDownCast (vtkObject *o)

static void	SetAutomaticPropertyConversion (bool)
	Get/Set the application wide setting for automatic conversion of properties. More...

static bool	GetAutomaticPropertyConversion ()

static bool	IsAttributeTypeAcceptable (int required_type, int attribute_type, int *acceptable_as_type=nullptr)
	Method to check if a particular attribute-type (`attribute_type`) will be accepted by this domain with a required attribute type (`required_type`). More...

static vtkSMInputArrayDomain *	FindApplicableDomain (vtkSMProperty *property)
	Helper method find the first `vtkSMInputArrayDomain` on the `property` that is acceptable based on the value of the property. More...

Static Public Member Functions inherited from vtkSMDomain
static vtkSMDomain *	New ()

static int	IsTypeOf (const char *type)

static vtkSMDomain *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMInputArrayDomain ()

	~vtkSMInputArrayDomain () override

virtual void	SetAttributeType (int)

void	SetAttributeType (const char *type)

int	ReadXMLAttributes (vtkSMProperty prop, vtkPVXMLElement element) override
	Set the appropriate ivars from the xml element. More...

bool	IsAttributeTypeAcceptable (int attributeType)
	Returns true if based on this->AttributeType, the specified `attributeType` is acceptable to this domain. More...

bool	HasAcceptableArray (vtkPVDataSetAttributesInformation *attrInfo)
	Returns true if based on this->AutomaticPropertyConversion and this->NumberOfComponents, an acceptable array can be found in the attrInfo. More...

Protected Member Functions inherited from vtkSMDomain
	vtkSMDomain ()

	~vtkSMDomain () override

virtual int	LoadState (vtkPVXMLElement vtkNotUsed(domainElement), vtkSMProxyLocator vtkNotUsed(loader))
	Load the state of the domain from the XML. More...

void	RemoveRequiredProperty (vtkSMProperty *prop)
	Remove the given property from the required properties list. More...

void	AddRequiredProperty (vtkSMProperty prop, const char function)
	Add a new required property to this domain. More...

void	DomainModified ()
	Invokes DomainModifiedEvent. More...

void	InvokeModified ()

unsigned int	GetNumberOfRequiredProperties ()
	Gets the number of required properties added. More...

void	SetProperty (vtkSMProperty *)
	Set the domain's property. More...

void	SaveState (vtkPVXMLElement parent, const char uid)
	Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes. More...

virtual void	ChildSaveState (vtkPVXMLElement *domainElement)
	Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes. More...

virtual void	SetIsOptional (bool)
	When the IsOptional flag is set, IsInDomain() always returns true. More...

virtual void	SetXMLName (const char *)
	Assigned by the XML parser. More...

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
int	AttributeType

std::vector< int >	AcceptableNumbersOfComponents

std::string	DataType

Protected Attributes inherited from vtkSMDomain
char *	XMLName

bool	IsOptional

vtkSMDomainInternals *	Internals

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

domain to ensure that input has required types of arrays.

vtkSMInputArrayDomain is a domain that can be used on a vtkSMInputProperty to check if the pipeline input provides attribute arrays of the required types e.g. if a filter can only work if the input data set has cell data arrays, then one can use this domain.

vtkSMInputArrayDomain also provides a mechanism to check if the attribute arrays have a certain number of components.

When enabled, ParaView supports automatic array conversion i.e. extracting components or converting cell data to point data and vice-versa is done implicitly. In that case, vtkSMInputArrayDomain's behavior also changes as appropriate.

Supported XML attributes:

attribute_type : (optional) value can be 'point', 'cell', 'field', 'vertex', 'edge', 'row', 'none', 'any-except-field', 'any'. If not specified, 'any-except-field' is assumed. This indicates the attribute type for acceptable arrays.
number_of_components : (optional) Indicates the number of components required in arrays that are considered acceptable. 0 (default) indicates any number of components is acceptable. A comma-separated list (e.g., "1" or "1,3,4") of component counts limits acceptable arrays to those with a number of components that appear in the list.
data_type: (optional) when specified must be the class name for data type that this domain is applicable to. This is useful when adding multiple input-array-domains a property with different requirements based on the type (see ("filters", "Contour") filter, for example).

This domain doesn't support any required properties (to help clean old code, we print a warning if any required properties are specified).

Attention: Prior to ParaView 5.0, attribute_type="any" meant all attributes excepting field data. For being consistent with general understanding of "any", this has been changed to include field data arrays since 5.0. Use "any-except-field" for cases where the intention is to match any attribute arrays except field data arrays.

Definition at line 67 of file vtkSMInputArrayDomain.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMDomain vtkSMInputArrayDomain::Superclass

Definition at line 71 of file vtkSMInputArrayDomain.h.

Member Enumeration Documentation

◆ AttributeTypes

enum vtkSMInputArrayDomain::AttributeTypes

Enumerator
POINT
CELL
FIELD
ANY_EXCEPT_FIELD
VERTEX
EDGE
ROW
ANY
NUMBER_OF_ATTRIBUTE_TYPES

Definition at line 109 of file vtkSMInputArrayDomain.h.

Constructor & Destructor Documentation

◆ vtkSMInputArrayDomain()

vtkSMInputArrayDomain::vtkSMInputArrayDomain ( )

protected

◆ ~vtkSMInputArrayDomain()

vtkSMInputArrayDomain::~vtkSMInputArrayDomain ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMInputArrayDomain* vtkSMInputArrayDomain::New ( )

static

◆ GetClassName()

virtual const char* vtkSMInputArrayDomain::GetClassName ( )

virtual

Reimplemented from vtkSMDomain.

◆ IsTypeOf()

static int vtkSMInputArrayDomain::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMInputArrayDomain::IsA ( const char * type )

virtual

Reimplemented from vtkSMDomain.

◆ SafeDownCast()

static vtkSMInputArrayDomain* vtkSMInputArrayDomain::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMInputArrayDomain::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMDomain.

◆ IsInDomain() [1/2]

int vtkSMInputArrayDomain::IsInDomain ( vtkSMProperty * property )

override

Returns true if the value of the property is in the domain.

The property has to be a vtkSMProxyProperty which points to a vtkSMSourceProxy. The input has to have one or more arrays that match the requirements.

◆ IsInDomain() [2/2]

int vtkSMInputArrayDomain::IsInDomain	(	vtkSMSourceProxy *	proxy,
		unsigned int	outputport = `0`
	)

Returns true if input has one or more arrays that match the requirements on the given output port.

◆ GetAttributeType()

virtual int vtkSMInputArrayDomain::GetAttributeType ( )

virtual

Get the attribute type.

Valid values are defined in AttributeTypes which map to vtkDataObject::AttributeTypes.

◆ GetAttributeTypeAsString()

const char* vtkSMInputArrayDomain::GetAttributeTypeAsString ( )

Get the attribute type.

Valid values are defined in AttributeTypes which map to vtkDataObject::AttributeTypes.

◆ GetAcceptableNumbersOfComponents()

std::vector<int> vtkSMInputArrayDomain::GetAcceptableNumbersOfComponents ( ) const

Get the AcceptableNumberOfComponents vector Empty or containing a zero means no check.

◆ SetAutomaticPropertyConversion()

static void vtkSMInputArrayDomain::SetAutomaticPropertyConversion ( bool )

static

Get/Set the application wide setting for automatic conversion of properties.

Automatic conversion of properties allows conversion between cell and point based properties, and the extraction of vector components as scalar properties

◆ GetAutomaticPropertyConversion()

static bool vtkSMInputArrayDomain::GetAutomaticPropertyConversion ( )

static

◆ IsAttributeTypeAcceptable() [1/2]

static bool vtkSMInputArrayDomain::IsAttributeTypeAcceptable	(	int	required_type,
		int	attribute_type,
		int *	acceptable_as_type = `nullptr`
	)

static

Method to check if a particular attribute-type (attribute_type) will be accepted by this domain with a required attribute type (required_type).

This takes into consideration the state of AutomaticePropertyConversion flag. If a particular attribute_type is acceptable only because AutomaticPropertyConversion is true, acceptable_as_type value will be set to the attribute type that the particular attribute was automatically converted to. e.g. is required_type = POINT and attribute_type is CELL and AutomaticPropertyConversion is true, this method will return true and acceptable_as_type will be set to POINT. In other cases, acceptable_as_type is simply set to attribute_type.

◆ IsArrayAcceptable()

int vtkSMInputArrayDomain::IsArrayAcceptable ( vtkPVArrayInformation * arrayInfo )

This method will check if the arrayInfo contain info about an acceptable array, by checking its number of components against this domain acceptable numbers of components.

Note that it takes into account property conversion This method return the accepted number of components to use.

◆ FindApplicableDomain()

static vtkSMInputArrayDomain* vtkSMInputArrayDomain::FindApplicableDomain ( vtkSMProperty * property )

static

Helper method find the first vtkSMInputArrayDomain on the property that is acceptable based on the value of the property.

The property is typically vtkSMInputProperty. If none of the domains applicable, this will simply return the first vtkSMInputArrayDomain that is found.

◆ SetAttributeType() [1/2]

virtual void vtkSMInputArrayDomain::SetAttributeType ( int )

protectedvirtual

◆ SetAttributeType() [2/2]

void vtkSMInputArrayDomain::SetAttributeType ( const char * type )

protected

◆ ReadXMLAttributes()

int vtkSMInputArrayDomain::ReadXMLAttributes	(	vtkSMProperty *	prop,
		vtkPVXMLElement *	element
	)

overrideprotectedvirtual

Set the appropriate ivars from the xml element.

Should be overwritten by subclass if adding ivars.

Reimplemented from vtkSMDomain.

◆ IsAttributeTypeAcceptable() [2/2]

bool vtkSMInputArrayDomain::IsAttributeTypeAcceptable ( int attributeType )

protected

Returns true if based on this->AttributeType, the specified attributeType is acceptable to this domain.

◆ HasAcceptableArray()

bool vtkSMInputArrayDomain::HasAcceptableArray ( vtkPVDataSetAttributesInformation * attrInfo )

protected

Returns true if based on this->AutomaticPropertyConversion and this->NumberOfComponents, an acceptable array can be found in the attrInfo.

Member Data Documentation

◆ AttributeType

int vtkSMInputArrayDomain::AttributeType

protected

Definition at line 178 of file vtkSMInputArrayDomain.h.

◆ AcceptableNumbersOfComponents

std::vector<int> vtkSMInputArrayDomain::AcceptableNumbersOfComponents

protected

Definition at line 179 of file vtkSMInputArrayDomain.h.

◆ DataType

std::string vtkSMInputArrayDomain::DataType

protected

Definition at line 180 of file vtkSMInputArrayDomain.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMInputArrayDomain.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ AttributeTypes

Constructor & Destructor Documentation

◆ vtkSMInputArrayDomain()

◆ ~vtkSMInputArrayDomain()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ IsInDomain() [1/2]

◆ IsInDomain() [2/2]

◆ GetAttributeType()

◆ GetAttributeTypeAsString()

◆ GetAcceptableNumbersOfComponents()

◆ SetAutomaticPropertyConversion()

◆ GetAutomaticPropertyConversion()

◆ IsAttributeTypeAcceptable() [1/2]

◆ IsArrayAcceptable()

◆ FindApplicableDomain()

◆ SetAttributeType() [1/2]

◆ SetAttributeType() [2/2]

◆ ReadXMLAttributes()

◆ IsAttributeTypeAcceptable() [2/2]

◆ HasAcceptableArray()

Member Data Documentation

◆ AttributeType

◆ AcceptableNumbersOfComponents

◆ DataType
