vtkSMViewLayoutProxy is used by ParaView to layout multiple views in a 2D KD-Tree layout. More...

#include <vtkSMViewLayoutProxy.h>

Inheritance diagram for vtkSMViewLayoutProxy:

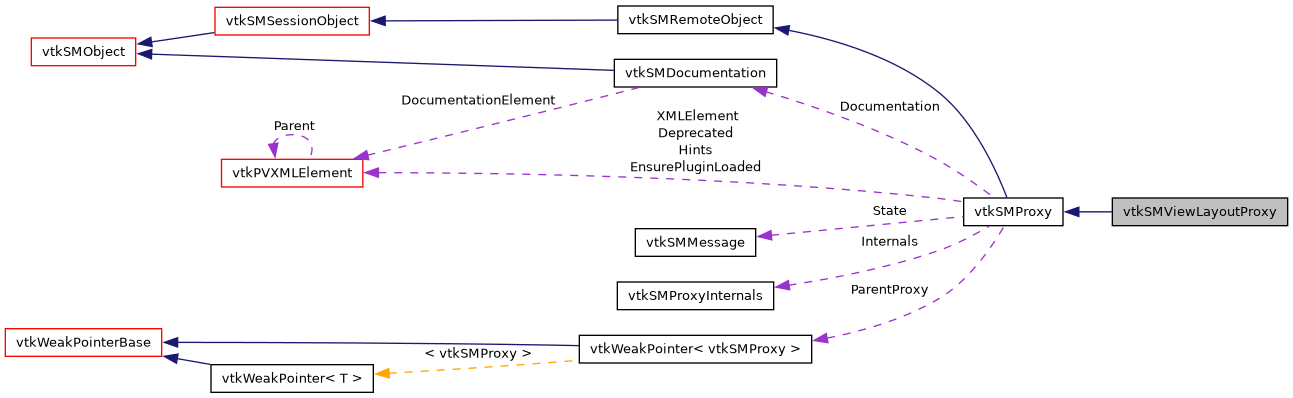

Collaboration diagram for vtkSMViewLayoutProxy:

[legend]

Public Types
enum	Direction { NONE, VERTICAL, HORIZONTAL }

typedef vtkSMProxy	Superclass

Public Types inherited from vtkSMProxy
enum	ResetPropertiesMode { DEFAULT = 0, ONLY_XML = 1, ONLY_DOMAIN = 2 }

enum	{ COPY_PROXY_PROPERTY_VALUES_BY_REFERENCE = 0, COPY_PROXY_PROPERTY_VALUES_BY_CLONING }
	Flags used for the proxyPropertyCopyFlag argument to the Copy method. More...

typedef vtkSMRemoteObject	Superclass

Public Types inherited from vtkSMRemoteObject
typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

int	Split (int location, int direction, double fraction)
	Split a frame at the given `location`. More...

int	SplitVertical (int location, double fraction)

int	SplitHorizontal (int location, double fraction)

bool	AssignView (int location, vtkSMViewProxy *view)
	Assign a view at a particular location. More...

int	AssignViewToAnyCell (vtkSMViewProxy *view, int location_hint)
	Similar to AssignView() except that is location specified is not available, then this method treats the location merely as a hint and tries to find a suitable place. More...

bool	Collapse (int location)
	Collapses a cell. More...

bool	SwapCells (int location1, int location2)
	Swaps the cells at the two locations. More...

bool	SetSplitFraction (int location, double fraction)
	Update the split fraction for a split cell. More...

bool	EqualizeViews ()
	Equalize views so they appear evenly sized. More...

bool	EqualizeViews (Direction direction)
	Equalize views so they appear evenly sized along direction. More...

bool	MaximizeCell (int location)
	One can maximize a particular (non-split) cell. More...

void	RestoreMaximizedState ()
	Restores the maximized state. More...

bool	IsSplitCell (int location)
	Returns true if the cell identified by the location is a split cell. More...

Direction	GetSplitDirection (int location)
	Returns the split direction for a split cell at the given location. More...

double	GetSplitFraction (int location)
	Returns the split-fraction for a split cell at the given location. More...

vtkSMViewProxy *	GetView (int location)
	Returns the view, if any, assigned to the given cell location. More...

int	GetViewLocation (vtkSMViewProxy *)
	Returns the location for the view, of any. More...

void	UpdateViewPositions ()
	Updates positions for all views using the layout and current sizes. More...

void	ShowViewsOnTileDisplay ()
	When in tile-display configuration, only 1 view-layout is shown on the tile-display (for obvious reasons). More...

vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement *root) override
	Overridden to save custom XML state. More...

vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement root, vtkSMPropertyIterator iter) override
	The iterator is use to filter the property available on the given proxy. More...

int	LoadXMLState (vtkPVXMLElement element, vtkSMProxyLocator locator) override
	Overridden to load custom XML state. More...

void	Reset ()
	Resets the layout. More...

void	GetLayoutExtent (int extent[4])
	Returns the extents for all views in the layout. More...

vtkVector2i	GetSize ()
	Returns the current size. More...

std::vector< vtkSMViewProxy * >	GetViews ()
	Returns a vector of the view proxies added to his layout. More...


int	RemoveView (vtkSMViewProxy *view)
	Removes a view. More...

bool	RemoveView (int index)
	Removes a view. More...


virtual int	GetMaximizedCell ()
	Returns the maximized cell, if any. More...


bool	ContainsView (vtkSMViewProxy *view)
	Returns if a view is contained in this layout. More...

bool	ContainsView (vtkSMProxy *view)
	Returns if a view is contained in this layout. More...


vtkImageData *	CaptureWindow (int magnification)
	Captures an image from the layout (including all the views in the layout. More...

vtkImageData *	CaptureWindow (int magnificationX, int magnificationY)
	Captures an image from the layout (including all the views in the layout. More...


void	SetSize (const int size[2])
	Update the size for all the views in the layout assuming the new size provided for the whole layout. More...

void	SetSize (int width, int height)
	Update the size for all the views in the layout assuming the new size provided for the whole layout. More...


void	SaveAsPNG (int rank, const char *fname)
	This is only meant for testing and debugging purposes. More...

Public Member Functions inherited from vtkSMProxy
void	SetAnnotation (const char key, const char value)

const char *	GetAnnotation (const char *key)
	Retrieve an annotation with a given key. More...

void	RemoveAnnotation (const char *key)
	Remove a given annotation based on its key to the proxy. More...

void	RemoveAllAnnotations ()
	Remove all proxy annotations. More...

bool	HasAnnotation (const char *key)
	Return true if a given annotation exists. More...

int	GetNumberOfAnnotations ()
	Return the number of available annotations. More...

const char *	GetAnnotationKeyAt (int index)
	Return the nth key of the available annotations. More...

void	SetLocation (vtkTypeUInt32) override
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkSMProperty *	GetProperty (const char *name)
	Return the property with the given name. More...

virtual vtkSMProperty *	GetProperty (const char *name, int selfOnly)
	Return a property of the given name from self or one of the sub-proxies. More...

const char *	GetPropertyName (vtkSMProperty *prop)
	Given a property pointer, returns the name that was used to add it to the proxy. More...

virtual void	UpdateVTKObjects ()
	Update the VTK object on the server by pushing the values of all modified properties (un-modified properties are ignored). More...

virtual void	RecreateVTKObjects ()
	Recreate the VTK object for this proxy. More...

void	InvokeCommand (const char *name)
	Convenience method equivalent to UpdateProperty(name, 1). More...

virtual vtkSMPropertyIterator *	NewPropertyIterator ()
	Returns a new (initialized) iterator of the properties. More...

unsigned int	GetNumberOfConsumers ()
	Returns the number of consumers. More...

vtkSMProxy *	GetConsumerProxy (unsigned int idx)
	Returns the consumer of given index. More...

vtkSMProperty *	GetConsumerProperty (unsigned int idx)
	Returns the corresponding property of the consumer of given index. More...

unsigned int	GetNumberOfProducers ()
	Returns the number of proxies this proxy depends on (uses or is connected to through the pipeline). More...

vtkSMProxy *	GetProducerProxy (unsigned int idx)
	Returns a proxy this proxy depends on, given index. More...

vtkSMProperty *	GetProducerProperty (unsigned int idx)
	Returns the property holding a producer proxy given an index. More...

virtual void	UpdatePropertyInformation ()
	Updates all property information by calling UpdateInformation() and populating the values. More...

virtual void	UpdatePropertyInformation (vtkSMProperty *prop)
	Similar to UpdatePropertyInformation() but updates only the given property. More...

virtual void	MarkAllPropertiesAsModified ()
	Marks all properties as modified. More...

virtual void	ResetPropertiesToXMLDefaults ()
	Use this method to set all properties on this proxy to their default values. More...

virtual void	ResetPropertiesToDomainDefaults ()
	Use this method to set all properties on this proxy to their default domains. More...

virtual void	ResetPropertiesToDefault (ResetPropertiesMode mode=DEFAULT)
	Use this method to set all properties on this proxy to their default domain or values. More...

virtual void	MarkModified (vtkSMProxy *modifiedProxy)
	Calls MarkDirty() and invokes ModifiedEvent. More...

bool	IsDeprecated ()
	Returns true if the proxy has a deprecation tag. More...

void	InitializeAndCopyFromProxy (vtkSMProxy *source)
	Given a source proxy, makes this proxy point to the same server-side object (with a new id). More...

virtual void	MarkDirty (vtkSMProxy *modifiedProxy)
	Dirty means this algorithm will execute during next update. More...

vtkObjectBase *	GetClientSideObject ()
	Returns the client side object associated with the VTKObjectID (if any). More...

void	UpdateSelfAndAllInputs ()
	This method call UpdateVTKObjects on the current pipeline by starting at the sources. More...

bool	GetIsSubProxy ()
	A proxy instance can be a sub-proxy for some other proxy. More...

vtkSMProxy *	GetParentProxy ()
	If this instance is a sub-proxy, this method will return the proxy of which this instance is an immediate sub-proxy. More...

vtkSMProxy *	GetTrueParentProxy ()
	Call GetParentProxy() recursively till a proxy that is not a subproxy of any other proxy is found. More...

void	EnableLocalPushOnly () override
	Allow to switch off any push of state change to the server for that particular object. More...

void	DisableLocalPushOnly () override
	Enable the given remote object to communicate its state normally to the server location. More...

const vtkSMMessage *	GetFullState () override
	This method return the full object state that can be used to create that object from scratch. More...

vtkSMPropertyGroup *	GetPropertyGroup (size_t index) const
	Returns the property group at `index` for the proxy. More...

size_t	GetNumberOfPropertyGroups () const
	Returns the number of property groups that the proxy contains. More...

const char *	GetLogNameOrDefault ()
	A helper that makes up an default name if none is provided. More...

bool	GetPropertiesModified ()

virtual std::vector< std::string >	GetPropertiesWithDifferentValues (vtkSMProxy *otherProxy)
	Return the property names that have values different from the otherProxy argument. More...

bool	UpdateProperty (const char *name)
	Update the value of one property (pushed to the server) if it is modified. More...

bool	UpdateProperty (const char *name, int force)
	Update the value of one property (pushed to the server) if it is modified. More...

virtual char *	GetVTKClassName ()
	Returns the type of object managed by the proxy. More...

virtual void	SetVTKClassName (const char *)
	the type of object created by the proxy. More...

virtual char *	GetXMLName ()
	Assigned by the XML parser. More...

virtual char *	GetXMLGroup ()
	Assigned by the XML parser. More...

virtual char *	GetXMLLabel ()
	Assigned by the XML parser. More...

void	Copy (vtkSMProxy *src)
	Copies values of all the properties and sub-proxies from src. More...

void	Copy (vtkSMProxy src, const char exceptionClass)
	Copies values of all the properties and sub-proxies from src. More...

virtual void	Copy (vtkSMProxy src, const char exceptionClass, int proxyPropertyCopyFlag)
	Copies values of all the properties and sub-proxies from src. More...

virtual vtkSMDocumentation *	GetDocumentation ()
	Returns the documentation for this proxy. More...

virtual vtkPVXMLElement *	GetHints ()
	The server manager configuration XML may define `<Hints/>` element for a proxy. More...

virtual int	GetObjectsCreated ()
	Returns if the VTK objects for this proxy have been created. More...

bool	GatherInformation (vtkPVInformation *information)
	Gathers information about this proxy. More...

bool	GatherInformation (vtkPVInformation *information, vtkTypeUInt32 location)
	Gathers information about this proxy. More...

void	PrototypeOn () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	PrototypeOff () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	SetPrototype (bool undo) override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	SetLogName (const char *name)
	Log name is a name for this proxy that will be used when logging status messages. More...

virtual char *	GetLogName ()
	Log name is a name for this proxy that will be used when logging status messages. More...

Public Member Functions inherited from vtkSMRemoteObject
void	SetSession (vtkSMSession *) override
	Override the SetSession so if the object already have an ID we automatically register it to the associated session. More...

bool	HasGlobalID ()
	Allow the user to test if the RemoteObject has already a GlobalID without assigning a new one to it. More...

virtual bool	IsLocalPushOnly ()
	Let the session be aware that even if the Location is client only, the message should not be send to the server for a general broadcast. More...

virtual vtkTypeUInt32	GetLocation ()
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkTypeUInt32	GetGlobalID ()
	Get the global unique id for this object. More...

const char *	GetGlobalIDAsString ()
	Get the global unique id for this object. More...

bool	IsPrototype ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

Public Member Functions inherited from vtkSMSessionObject
virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMViewLayoutProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMViewLayoutProxy *	SafeDownCast (vtkObject *o)

static int	GetFirstChild (int location)
	Returns the index for the first child of the given location. More...

static int	GetSecondChild (int location)
	Returns the index for the second child of the given location. More...

static int	GetParent (int location)
	Returns the parent index. More...

static vtkSMViewLayoutProxy *	FindLayout (vtkSMViewProxy , const char reggroup="layouts")
	Helper method to locate a layout, if any that contains the specified view proxy. More...

Static Public Member Functions inherited from vtkSMProxy
static vtkSMProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMRemoteObject
static int	IsTypeOf (const char *type)

static vtkSMRemoteObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMViewLayoutProxy ()

	~vtkSMViewLayoutProxy () override

void	LoadState (const vtkSMMessage message, vtkSMProxyLocator locator) override
	Called to load state from protobuf message. More...

virtual void	UpdateState ()
	Although this class is a proxy, it's not really a proxy in the traditional sense. More...

int	GetEmptyCell (int root)
	Starting with the cell-index, tries to find an empty cell in the sub-tree. More...

int	GetSplittableCell (int root, Direction &suggested_direction)
	Starting with the root, finds a splittable cell. More...

int	ComputeSteadySplitFraction (int location, Direction direction)
	Recompute SplitFraction recursively so cells appears evenly sized along direction. More...

Protected Member Functions inherited from vtkSMProxy
	vtkSMProxy ()

	~vtkSMProxy () override

void	ExecuteStream (const vtkClientServerStream &msg, bool ignore_errors=false, vtkTypeUInt32 location=0)
	Invoke that takes a vtkClientServerStream as the argument. More...

virtual void	UpdateAndPushAnnotationState ()

virtual void	AddProperty (const char name, vtkSMProperty prop)
	Add a property with the given key (name). More...

virtual void	MarkConsumersAsDirty (vtkSMProxy *modifiedProxy)
	Calls `MarkDirtyFromProducer` on all consumers. More...

virtual void	MarkDirtyFromProducer (vtkSMProxy modifiedProxy, vtkSMProxy producer, vtkSMProperty *property)
	`MarkConsumersAsDirty` calls this method on each consumer, instead of directly calling `MarkDirty` on the consumer. More...

void	MarkInputsAsDirty ()
	This method is called by vtkSMRepresentationProxy whenever the time request for the pipeline may have potentially changed. More...

virtual void	CreateVTKObjects ()
	Given a class name (by setting VTKClassName) and server ids (by setting ServerIDs), this methods instantiates the objects on the server(s) More...

void	RemoveAllObservers ()
	Cleanup code. More...

virtual void	SetPropertyModifiedFlag (const char *name, int flag)
	Note on property modified flags: The modified flag of each property associated with a proxy is stored in the proxy object instead of in the property itself. More...

void	AddSubProxy (const char name, vtkSMProxy proxy, int overrideOK=0)
	Add a sub-proxy. More...

void	RemoveSubProxy (const char *name)
	Remove a sub-proxy. More...

vtkSMProxy *	GetSubProxy (const char *name)
	Returns a sub-proxy. More...

vtkSMProxy *	GetSubProxy (unsigned int index)
	Returns a sub-proxy. More...

const char *	GetSubProxyName (unsigned int index)
	Returns the name used to store sub-proxy. More...

const char *	GetSubProxyName (vtkSMProxy *)
	Returns the name used to store sub-proxy. More...

unsigned int	GetNumberOfSubProxies ()
	Returns the number of sub-proxies. More...

virtual void	AddConsumer (vtkSMProperty property, vtkSMProxy proxy)
	Called by a proxy property, this adds the property,proxy pair to the list of consumers. More...

virtual void	RemoveConsumer (vtkSMProperty property, vtkSMProxy proxy)
	Remove the property,proxy pair from the list of consumers. More...

virtual void	RemoveAllConsumers ()
	Remove all consumers. More...

void	AddProducer (vtkSMProperty property, vtkSMProxy proxy)
	Called by an proxy/input property to add property, proxy pair to the list of producers. More...

void	RemoveProducer (vtkSMProperty property, vtkSMProxy proxy)
	Remove the property,proxy pair from the list of producers. More...

virtual void	PostUpdateData (bool using_cache)
	This method is called after the algorithm(s) (if any) associated with this proxy execute. More...

void	PostUpdateDataSelfOnly (bool using_cache)
	This is called by `PostUpdateData` to only update state for this proxy without iterative over producers. More...

bool	WarnIfDeprecated ()
	If a proxy is deprecated, prints a warning. More...

bool	LoadPluginIfEnsured ()
	If a proxy need to ensure a plugin is loaded, make sure it is. More...

virtual void	UpdatePipelineInformation ()
	This method simply iterates over subproxies and calls UpdatePipelineInformation() on them. More...

void	LinkProperty (vtkSMProperty inputProperty, vtkSMProperty outputProperty)
	Links properties such that when inputProperty's checked or unchecked values are changed, the outputProperty's corresponding values are also changed. More...

vtkSMPropertyGroup *	NewPropertyGroup (vtkPVXMLElement *propElement)
	Parses the XML to create a new property group. More...

void	AppendPropertyGroup (vtkSMPropertyGroup *group)
	Adds a property groups. More...

void	ExposeSubProxyProperty (const char subproxy_name, const char property_name, const char *exposed_name, int overrideOK=0)
	Expose a subproxy property from the base proxy. More...

virtual void	ExecuteSubProxyEvent (vtkSMProxy o, unsigned long event, void data)
	Handle events fired by subproxies. More...

virtual int	CreateSubProxiesAndProperties (vtkSMSessionProxyManager pm, vtkPVXMLElement element)

virtual void	UpdatePropertyInformationInternal (vtkSMProperty *prop=nullptr)
	Called to update the property information on the property. More...

void	RebuildStateForProperties ()
	vtkSMProxy tracks state of properties on this proxy in an internal State object. More...

virtual void	SetLogNameInternal (const char *name, bool propagate_to_subproxies, bool propagate_to_proxylistdomains)
	Internal method used by `SetLogName` More...

bool	ArePropertiesModified ()
	Indicates if any properties are modified. More...

void	SetHints (vtkPVXMLElement *hints)

void	SetDeprecated (vtkPVXMLElement *deprecated)

void	SetEnsurePluginLoaded (vtkPVXMLElement *ensurePluginLoaded)
	Set the "EnsurePluginLoaded" XML element that is used in LoadPluginIfEnsured. More...

void	SetXMLElement (vtkPVXMLElement *element)

	vtkSMProxy (const vtkSMProxy &)=delete

void	operator= (const vtkSMProxy &)=delete

virtual const vtkClientServerStream &	GetLastResult ()
	Get the last result. More...

virtual const vtkClientServerStream &	GetLastResult (vtkTypeUInt32 location)
	Get the last result. More...

virtual void	SetXMLName (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLGroup (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLLabel (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLSubProxyName (const char *)
	Assigned by the XML parser. More...

vtkSMProperty *	NewProperty (const char *name)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...

vtkSMProperty *	NewProperty (const char name, vtkPVXMLElement propElement)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...

virtual int	ReadXMLAttributes (vtkSMSessionProxyManager pm, vtkPVXMLElement element)
	Read attributes from an XML element. More...

void	SetupExposedProperties (const char subproxy_name, vtkPVXMLElement element)
	Read attributes from an XML element. More...

void	SetupSharedProperties (vtkSMProxy subproxy, vtkPVXMLElement element)
	Read attributes from an XML element. More...

virtual void	SetSIClassName (const char *)
	SIClassName identifies the classname for the helper on the server side. More...

virtual char *	GetSIClassName ()
	SIClassName identifies the classname for the helper on the server side. More...

Protected Member Functions inherited from vtkSMRemoteObject
	vtkSMRemoteObject ()
	Default constructor. More...

	~vtkSMRemoteObject () override
	Destructor. More...

void	PushState (vtkSMMessage *msg)
	Subclasses can call this method to send a message to its state object on the server processes specified. More...

bool	PullState (vtkSMMessage *msg)
	Subclasses can call this method to pull the state from the state-object on the server processes specified. More...

void	SetGlobalID (vtkTypeUInt32 guid)
	Set the GlobalUniqueId. More...

vtkTypeUInt32	GetFilteredLocation ()

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
int	MaximizedCell

Protected Attributes inherited from vtkSMProxy
bool	NeedsUpdate

char *	VTKClassName

char *	XMLGroup

char *	XMLName

char *	XMLLabel

char *	XMLSubProxyName

int	ObjectsCreated

int	DoNotUpdateImmediately

int	DoNotModifyProperty

int	InUpdateVTKObjects
	Avoids calls to UpdateVTKObjects in UpdateVTKObjects. More...

bool	PropertiesModified
	Flag used to help speed up UpdateVTKObjects and ArePropertiesModified calls. More...

vtkPVXMLElement *	XMLElement

vtkSMDocumentation *	Documentation

vtkPVXMLElement *	Hints = nullptr

vtkPVXMLElement *	Deprecated = nullptr

vtkPVXMLElement *	EnsurePluginLoaded = nullptr

vtkSMMessage *	State

int	InMarkModified

vtkWeakPointer< vtkSMProxy >	ParentProxy

vtkSMProxyInternals *	Internals

vtkSMProxyObserver *	SubProxyObserver

char *	SIClassName
	SIClassName identifies the classname for the helper on the server side. More...

Protected Attributes inherited from vtkSMRemoteObject
vtkTypeUInt32	GlobalID

vtkTypeUInt32	Location

bool	Prototype

bool	ClientOnlyLocationFlag

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

vtkSMViewLayoutProxy is used by ParaView to layout multiple views in a 2D KD-Tree layout.

vtkSMViewLayoutProxy is used by ParaView to layout multiple views in a 2D KD-Tree layout. This is proxy, hence can be registered with the proxy manager just like other regular proxies; participates in xml state saving/restoring, undo-redo, etc. Users can affects the GUI layout using this proxy instance from Python as well.

Every time the vtkSMViewLayoutProxy changes so that it would affect the UI, this class fires vtkCommand::ConfigureEvent.

View proxies that are to laid out in an layout should be "assigned" to a particular cell in a vtkSMViewLayoutProxy instance. vtkSMViewLayoutProxy takes over the responsibility of updating the view's Position property correctly.

Although, currently, there are no safe guards against assigning a view to more than one layout, this is strictly prohibited and can cause unexpected problems at run-time.

Definition at line 39 of file vtkSMViewLayoutProxy.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMProxy vtkSMViewLayoutProxy::Superclass

Definition at line 43 of file vtkSMViewLayoutProxy.h.

Member Enumeration Documentation

◆ Direction

enum vtkSMViewLayoutProxy::Direction

Enumerator
NONE
VERTICAL
HORIZONTAL

Definition at line 46 of file vtkSMViewLayoutProxy.h.

Constructor & Destructor Documentation

◆ vtkSMViewLayoutProxy()

vtkSMViewLayoutProxy::vtkSMViewLayoutProxy ( )

protected

◆ ~vtkSMViewLayoutProxy()

vtkSMViewLayoutProxy::~vtkSMViewLayoutProxy ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMViewLayoutProxy* vtkSMViewLayoutProxy::New ( )

static

◆ GetClassName()

virtual const char* vtkSMViewLayoutProxy::GetClassName ( )

virtual

Reimplemented from vtkSMProxy.

◆ IsTypeOf()

static int vtkSMViewLayoutProxy::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMViewLayoutProxy::IsA ( const char * type )

virtual

Reimplemented from vtkSMProxy.

◆ SafeDownCast()

static vtkSMViewLayoutProxy* vtkSMViewLayoutProxy::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMViewLayoutProxy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMProxy.

◆ Split()

int vtkSMViewLayoutProxy::Split	(	int	location,
		int	direction,
		double	fraction
	)

Split a frame at the given location.

Location must point to an existing cell that's not split. If the location does not exist or is already split, then returns -1, to indicate failure. Otherwise returns the index of the left (or top) child node. The index for the sibling can be computed as (ret_val + 1). fraction indicates a value in the range [0.0, 1.0] at which the cell is split. If a View is set at the given location, it will be moved to the left (or top) child after the split.

◆ SplitVertical()

int vtkSMViewLayoutProxy::SplitVertical	(	int	location,
		double	fraction
	)

inline

Definition at line 63 of file vtkSMViewLayoutProxy.h.

◆ SplitHorizontal()

int vtkSMViewLayoutProxy::SplitHorizontal	(	int	location,
		double	fraction
	)

inline

Definition at line 67 of file vtkSMViewLayoutProxy.h.

◆ AssignView()

bool vtkSMViewLayoutProxy::AssignView	(	int	location,
		vtkSMViewProxy *	view
	)

Assign a view at a particular location.

Note that the view's position may be changed by Split() calls. Returns true on success.

◆ AssignViewToAnyCell()

int vtkSMViewLayoutProxy::AssignViewToAnyCell	(	vtkSMViewProxy *	view,
		int	location_hint
	)

Similar to AssignView() except that is location specified is not available, then this method treats the location merely as a hint and tries to find a suitable place.

First, if any empty cell is available, then that is used. Second, if no empty cell is available and location is a valid cell, then we either split the cell or traverse down the sub-tree from the cell and split a cell to make room for the view. Thus, this method will always assign the view to a frame. Returns the assigned location.

◆ RemoveView() [1/2]

int vtkSMViewLayoutProxy::RemoveView ( vtkSMViewProxy * view )

Removes a view.

Returns the location of the cell emptied by the view, if any, otherwise -1.

◆ RemoveView() [2/2]

bool vtkSMViewLayoutProxy::RemoveView ( int index )

Removes a view.

Returns the location of the cell emptied by the view, if any, otherwise -1.

◆ Collapse()

bool vtkSMViewLayoutProxy::Collapse ( int location )

Collapses a cell.

Only leaf cells without any assigned views can be collapsed. If the cell has a sibling, then that sibling is assigned to the parent node and the sibling cell is destroyed as well. Returns true on success, else false.

◆ SwapCells()

bool vtkSMViewLayoutProxy::SwapCells	(	int	location1,
		int	location2
	)

Swaps the cells at the two locations.

Both locations must be leaf locations i.e. cannot be split-cells.

◆ SetSplitFraction()

bool vtkSMViewLayoutProxy::SetSplitFraction	(	int	location,
		double	fraction
	)

Update the split fraction for a split cell.

If IsSplitCell(location) returns false, this method does not update the fraction.

◆ EqualizeViews() [1/2]

bool vtkSMViewLayoutProxy::EqualizeViews ( )

Equalize views so they appear evenly sized.

◆ EqualizeViews() [2/2]

bool vtkSMViewLayoutProxy::EqualizeViews ( Direction direction )

Equalize views so they appear evenly sized along direction.

◆ MaximizeCell()

bool vtkSMViewLayoutProxy::MaximizeCell ( int location )

One can maximize a particular (non-split) cell.

Note the maximized state is restored as soon as the layout is changed or when RestoreMaximizedState() is called. Returns false if the cell at the location cannot be maximized since it's a split cell or invalid cell, true otherwise.

◆ RestoreMaximizedState()

void vtkSMViewLayoutProxy::RestoreMaximizedState ( )

Restores the maximized state.

◆ GetMaximizedCell()

virtual int vtkSMViewLayoutProxy::GetMaximizedCell ( )

virtual

Returns the maximized cell, if any.

Returns -1 if no cell is currently maximized.

◆ IsSplitCell()

bool vtkSMViewLayoutProxy::IsSplitCell ( int location )

Returns true if the cell identified by the location is a split cell.

◆ GetSplitDirection()

Direction vtkSMViewLayoutProxy::GetSplitDirection ( int location )

Returns the split direction for a split cell at the given location.

◆ GetSplitFraction()

double vtkSMViewLayoutProxy::GetSplitFraction ( int location )

Returns the split-fraction for a split cell at the given location.

◆ GetFirstChild()

static int vtkSMViewLayoutProxy::GetFirstChild ( int location )

inlinestatic

Returns the index for the first child of the given location.

This does not do any validity checks for the location, nor that of the child.

Definition at line 168 of file vtkSMViewLayoutProxy.h.

◆ GetSecondChild()

static int vtkSMViewLayoutProxy::GetSecondChild ( int location )

inlinestatic

Returns the index for the second child of the given location.

This does not do any validity checks for the location, nor that of the child.

Definition at line 174 of file vtkSMViewLayoutProxy.h.

◆ GetParent()

static int vtkSMViewLayoutProxy::GetParent ( int location )

inlinestatic

Returns the parent index.

Definition at line 179 of file vtkSMViewLayoutProxy.h.

◆ GetView()

vtkSMViewProxy* vtkSMViewLayoutProxy::GetView ( int location )

Returns the view, if any, assigned to the given cell location.

◆ GetViewLocation()

int vtkSMViewLayoutProxy::GetViewLocation ( vtkSMViewProxy * )

Returns the location for the view, of any.

Returns -1 if the view is not found.

◆ ContainsView() [1/2]

bool vtkSMViewLayoutProxy::ContainsView ( vtkSMViewProxy * view )

inline

Returns if a view is contained in this layout.

Definition at line 196 of file vtkSMViewLayoutProxy.h.

◆ ContainsView() [2/2]

bool vtkSMViewLayoutProxy::ContainsView ( vtkSMProxy * view )

Returns if a view is contained in this layout.

◆ UpdateViewPositions()

void vtkSMViewLayoutProxy::UpdateViewPositions ( )

Updates positions for all views using the layout and current sizes.

This method is called automatically when the layout changes or the "ViewSize" property on the assigned views changes.

◆ ShowViewsOnTileDisplay()

void vtkSMViewLayoutProxy::ShowViewsOnTileDisplay ( )

When in tile-display configuration, only 1 view-layout is shown on the tile-display (for obvious reasons).

To show any particular layout on the tile display, simply call this method.

◆ CaptureWindow() [1/2]

vtkImageData* vtkSMViewLayoutProxy::CaptureWindow ( int magnification )

inline

Captures an image from the layout (including all the views in the layout.

Definition at line 218 of file vtkSMViewLayoutProxy.h.

◆ CaptureWindow() [2/2]

vtkImageData* vtkSMViewLayoutProxy::CaptureWindow	(	int	magnificationX,
		int	magnificationY
	)

Captures an image from the layout (including all the views in the layout.

◆ SaveXMLState() [1/2]

vtkPVXMLElement* vtkSMViewLayoutProxy::SaveXMLState ( vtkPVXMLElement * root )

inlineoverridevirtual

Overridden to save custom XML state.

Reimplemented from vtkSMProxy.

Definition at line 228 of file vtkSMViewLayoutProxy.h.

◆ SaveXMLState() [2/2]

vtkPVXMLElement* vtkSMViewLayoutProxy::SaveXMLState	(	vtkPVXMLElement *	root,
		vtkSMPropertyIterator *	iter
	)

overridevirtual

The iterator is use to filter the property available on the given proxy.

Reimplemented from vtkSMProxy.

◆ LoadXMLState()

int vtkSMViewLayoutProxy::LoadXMLState	(	vtkPVXMLElement *	element,
		vtkSMProxyLocator *	locator
	)

overridevirtual

Overridden to load custom XML state.

Reimplemented from vtkSMProxy.

◆ Reset()

void vtkSMViewLayoutProxy::Reset ( )

Resets the layout.

◆ GetLayoutExtent()

void vtkSMViewLayoutProxy::GetLayoutExtent ( int extent[4] )

Returns the extents for all views in the layout.

◆ SetSize() [1/2]

void vtkSMViewLayoutProxy::SetSize ( const int size[2] )

Update the size for all the views in the layout assuming the new size provided for the whole layout.

This resizes and repositions each view based the recursive split ratios for all the cells in the layout.

◆ SetSize() [2/2]

void vtkSMViewLayoutProxy::SetSize	(	int	width,
		int	height
	)

inline

Update the size for all the views in the layout assuming the new size provided for the whole layout.

This resizes and repositions each view based the recursive split ratios for all the cells in the layout.

Definition at line 256 of file vtkSMViewLayoutProxy.h.

◆ GetSize()

vtkVector2i vtkSMViewLayoutProxy::GetSize ( )

inline

Returns the current size.

Definition at line 266 of file vtkSMViewLayoutProxy.h.

◆ FindLayout()

static vtkSMViewLayoutProxy* vtkSMViewLayoutProxy::FindLayout	(	vtkSMViewProxy *	,
		const char *	reggroup = `"layouts"`
	)

static

Helper method to locate a layout, if any that contains the specified view proxy.

◆ GetViews()

std::vector<vtkSMViewProxy*> vtkSMViewLayoutProxy::GetViews ( )

Returns a vector of the view proxies added to his layout.

◆ SaveAsPNG()

void vtkSMViewLayoutProxy::SaveAsPNG	(	int	rank,
		const char *	fname
	)

This is only meant for testing and debugging purposes.

This allows the application to save the image rendered on the server side in certain configurations (tile display and cave) to a png file for regression testing.

◆ LoadState()

void vtkSMViewLayoutProxy::LoadState	(	const vtkSMMessage *	message,
		vtkSMProxyLocator *	locator
	)

overrideprotectedvirtual

Called to load state from protobuf message.

Reimplemented from vtkSMProxy.

◆ UpdateState()

virtual void vtkSMViewLayoutProxy::UpdateState ( )

protectedvirtual

Although this class is a proxy, it's not really a proxy in the traditional sense.

So instead of using UpdateVTKObjects() to push state changes to the server (or undo-redo stack), this new method is provided.

◆ GetEmptyCell()

int vtkSMViewLayoutProxy::GetEmptyCell ( int root )

protected

Starting with the cell-index, tries to find an empty cell in the sub-tree.

Returns -1 if none found. May return root, if root is indeed an empty cell. Note this assumes that root is valid.

◆ GetSplittableCell()

int vtkSMViewLayoutProxy::GetSplittableCell	(	int	root,
		Direction &	suggested_direction
	)

protected

Starting with the root, finds a splittable cell.

Assumes root is valid.

◆ ComputeSteadySplitFraction()

int vtkSMViewLayoutProxy::ComputeSteadySplitFraction	(	int	location,
		Direction	direction
	)

protected

Recompute SplitFraction recursively so cells appears evenly sized along direction.

return the weight of the cell at location, i.e. the number of impacted children.

Member Data Documentation

◆ MaximizedCell

int vtkSMViewLayoutProxy::MaximizedCell

protected

Definition at line 328 of file vtkSMViewLayoutProxy.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkSMViewLayoutProxy.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ Direction

Constructor & Destructor Documentation

◆ vtkSMViewLayoutProxy()

◆ ~vtkSMViewLayoutProxy()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ Split()

◆ SplitVertical()

◆ SplitHorizontal()

◆ AssignView()

◆ AssignViewToAnyCell()

◆ RemoveView() [1/2]

◆ RemoveView() [2/2]

◆ Collapse()

◆ SwapCells()

◆ SetSplitFraction()

◆ EqualizeViews() [1/2]

◆ EqualizeViews() [2/2]

◆ MaximizeCell()

◆ RestoreMaximizedState()

◆ GetMaximizedCell()

◆ IsSplitCell()

◆ GetSplitDirection()

◆ GetSplitFraction()

◆ GetFirstChild()

◆ GetSecondChild()

◆ GetParent()

◆ GetView()

◆ GetViewLocation()

◆ ContainsView() [1/2]

◆ ContainsView() [2/2]

◆ UpdateViewPositions()

◆ ShowViewsOnTileDisplay()

◆ CaptureWindow() [1/2]

◆ CaptureWindow() [2/2]

◆ SaveXMLState() [1/2]

◆ SaveXMLState() [2/2]

◆ LoadXMLState()

◆ Reset()

◆ GetLayoutExtent()

◆ SetSize() [1/2]

◆ SetSize() [2/2]

◆ GetSize()

◆ FindLayout()

◆ GetViews()

◆ SaveAsPNG()

◆ LoadState()

◆ UpdateState()

◆ GetEmptyCell()

◆ GetSplittableCell()

◆ ComputeSteadySplitFraction()

Member Data Documentation

◆ MaximizedCell
