pqInteractivePropertyWidget is an abstract pqPropertyWidget subclass designed to serve as the superclass for all pqPropertyWidget types that have interactive widget (also called 3D Widgets) associated with them. More...
#include <pqInteractivePropertyWidget.h>
Public Member Functions | |
| pqInteractivePropertyWidget (const char *widget_smgroup, const char *widget_smname, vtkSMProxy *proxy, vtkSMPropertyGroup *smgroup, QWidget *parent=nullptr) | |
| ~pqInteractivePropertyWidget () override | |
| vtkSMNewWidgetRepresentationProxy * | widgetProxy () const |
| Returns the proxy for the 3D interactive widget. More... | |
 Public Member Functions inherited from pqInteractivePropertyWidgetAbstract | |
| pqInteractivePropertyWidgetAbstract (const char *widget_smgroup, const char *widget_smname, vtkSMProxy *proxy, vtkSMPropertyGroup *smgroup, QWidget *parent=nullptr) | |
| ~pqInteractivePropertyWidgetAbstract () override | |
| void | reset () override |
| Overridden to call this->render() to ensure that the widget is redrawn. More... | |
| void | setView (pqView *view) override |
| Overridden to show the widget proxy in the new view. More... | |
| bool | isWidgetVisible () const |
| Returns the interactive widget's visibility. More... | |
| vtkSMProxy * | dataSource () const |
| Returns the data source. More... | |
| vtkBoundingBox | dataBounds (bool visibleOnly=false) const |
| Returns bounds from the dataSource, if possible. More... | |
| vtkSMPropertyGroup * | propertyGroup () const |
| Returns the vtkSMPropertyGroup pass to the constructor. More... | |
| void | hideEvent (QHideEvent *) override |
| Overriden in order to hide the VTK widget. More... | |
| void | showEvent (QShowEvent *) override |
| Overriden in order to show the VTK widget. More... | |
| void | select () override |
| In these methods, we show/hide the widget since the interactive widget is not supposed to be visible except when the panel is "active" or "selected". More... | |
| void | deselect () override |
| In these methods, we show/hide the widget since the interactive widget is not supposed to be visible except when the panel is "active" or "selected". More... | |
| void | selectPort (int portIndex) final |
| In these methods, we show/hide the widget since the interactive widget is not supposed to be visible except when the panel is "active" or "selected". More... | |
| Public Member Functions inherited from pqPropertyWidget | |
| pqPropertyWidget (vtkSMProxy *proxy, QWidget *parent=nullptr) | |
| ~pqPropertyWidget () override | |
| virtual void | apply () |
| virtual void | updateWidget (bool showing_advanced_properties) |
| pqView * | view () const |
| vtkSMProxy * | proxy () const |
| vtkSMProperty * | property () const |
| virtual char * | panelVisibility () const |
| Forward calls to vtkSMProperty. More... | |
| virtual void | setPanelVisibility (const char *vis) |
| virtual bool | isSingleRowItem () const |
| Determines if the PropertyWidget must be constructed using a single row. More... | |
| bool | showLabel () const |
| const QList< QPointer< pqPropertyWidgetDecorator > > & | decorators () const |
| Provides access to the decorators for this widget. More... | |
| void | setProperty (vtkSMProperty *property) |
| bool | isSelected () const |
| These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive. More... | |
Protected Member Functions | |
| vtkSMNewWidgetRepresentationProxyAbstract * | internalWidgetProxy () final |
| Get the internal instance of the widget proxy. More... | |
| Protected Member Functions inherited from pqInteractivePropertyWidgetAbstract | |
| void | setupConnections (vtkSMNewWidgetRepresentationProxyAbstract *widget, vtkSMPropertyGroup *smgroup, vtkSMProxy *smproxy) |
| Setup all the links and events for the given widget and SM property group. More... | |
| void | setupUserObserver (vtkSMProxy *smproxy) |
| Protected Member Functions inherited from pqPropertyWidget | |
| void | addPropertyLink (QObject *qobject, const char *qproperty, const char *qsignal, vtkSMProperty *smproperty, int smindex=-1) |
| void | addPropertyLink (QObject *qobject, const char *qproperty, const char *qsignal, vtkSMProxy *smproxy, vtkSMProperty *smproperty, int smindex=-1) |
| void | removePropertyLink (QObject *qobject, const char *qproperty, const char *qsignal, vtkSMProperty *smproperty, int smindex=-1) |
| void | removePropertyLink (QObject *qobject, const char *qproperty, const char *qsignal, vtkSMProxy *smproxy, vtkSMProperty *smproperty, int smindex=-1) |
| void | setShowLabel (bool show) |
| void | setChangeAvailableAsChangeFinished (bool status) |
| For most pqPropertyWidget subclasses a changeAvailable() signal, corresponds to a changeFinished() signal. More... | |
| void | addDecorator (pqPropertyWidgetDecorator *) |
| Register a decorator. More... | |
| void | removeDecorator (pqPropertyWidgetDecorator *) |
| Unregisters a decorator. More... | |
| pqPropertyLinks & | links () |
| Provides access to the pqPropertyLinks instance. More... | |
Additional Inherited Members | |
| Public Slots inherited from pqInteractivePropertyWidgetAbstract | |
| virtual void | setWidgetVisible (bool val) |
| Toggle the interactive widget's visibility. More... | |
| void | setDataSource (vtkSMProxy *dataSource) |
| DataSource is used by interactive widgets to determine now to place the widget in the view e.g. More... | |
| Public Slots inherited from pqPropertyWidget | |
| Signals inherited from pqInteractivePropertyWidgetAbstract | |
| void | widgetVisibilityToggled (bool) |
| Fired whenever setWidgetVisible() changes the widget's visibility. More... | |
| void | widgetVisibilityUpdated (bool) |
| Fired whenever the widgets visibility is updated for whatever reason, be it because the panel was selected/deselected or the view changed, etc. More... | |
| void | startInteraction () |
| Fired by the underlying interactive widget representation proxy, for each respective events. More... | |
| void | interaction () |
| Fired by the underlying interactive widget representation proxy, for each respective events. More... | |
| void | endInteraction () |
| Fired by the underlying interactive widget representation proxy, for each respective events. More... | |
| Signals inherited from pqPropertyWidget | |
| void | viewChanged (pqView *view) |
| This signal is emitted when the current view changes. More... | |
| void | changeAvailable () |
| This signal is fired as soon as the user starts editing in the widget. More... | |
| void | changeFinished () |
| This signal is fired as soon as the user is done with making an atomic change. More... | |
| void | restartRequired () |
| Indicates that a restart of the program is required for the setting to take effect. More... | |
| Static Public Member Functions inherited from pqPropertyWidget | |
| template<class T > | |
| static QString | getXMLName (T *object) |
| Description: This static utility method returns the XML name for an object as a QString. More... | |
| static QString | getTooltip (vtkSMProperty *property) |
| Returns the tooltip to use for the property. More... | |
| static int | hintsWidgetHeightNumberOfRows (vtkPVXMLElement *hints, int defaultValue=10) |
| Helper method to return value from WidgetHeight XML hint, if any. More... | |
| static std::vector< std::string > | parseComponentLabels (vtkPVXMLElement *hints, unsigned int elemCount=0) |
| Parse a XML element as a list of label to use for this widget. More... | |
| Protected Slots inherited from pqInteractivePropertyWidgetAbstract | |
| virtual void | placeWidget ()=0 |
| Places the interactive widget using current data source information. More... | |
| void | render () |
| Safe call render on the view. More... | |
| virtual void | updateWidgetVisibility () |
| This method is called to update the state of Visibility and Enabled properties on the widget based on the state of isWidgetVisible(), isSelected() and the active view. More... | |
| Protected Attributes inherited from pqInteractivePropertyWidgetAbstract | |
| bool | VisibleState = true |
| bool | WidgetVisibility = false |
| int | LinkedPortIndex = -1 |
| Properties inherited from pqInteractivePropertyWidgetAbstract | |
| pqSMProxy | dataSource |

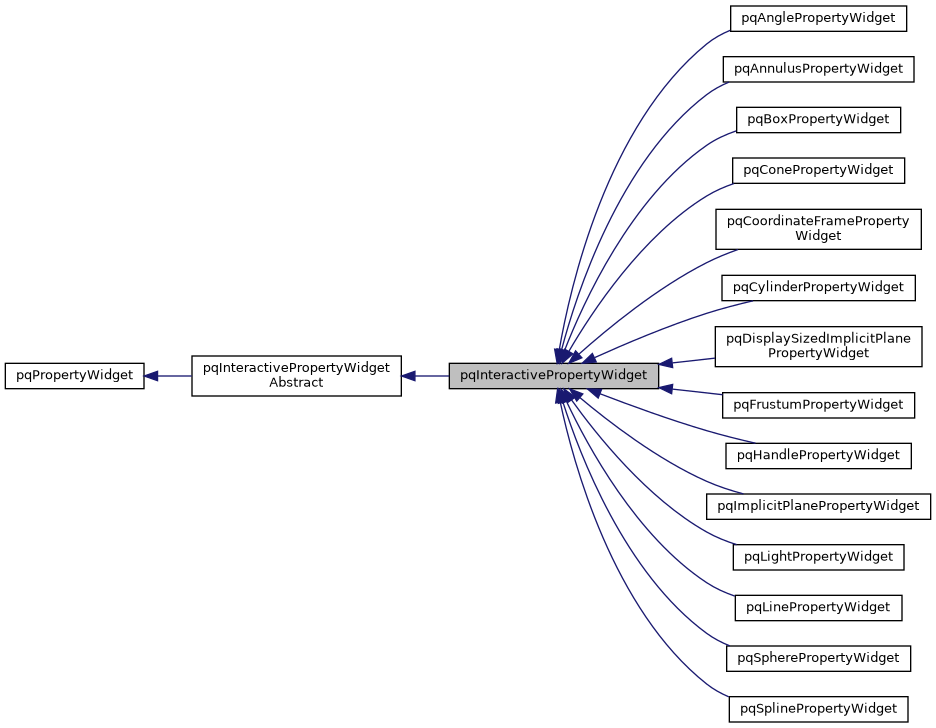

pqInteractivePropertyWidget is an abstract pqPropertyWidget subclass designed to serve as the superclass for all pqPropertyWidget types that have interactive widget (also called 3D Widgets) associated with them.
pqInteractivePropertyWidget is intended to provide a Qt widget (along with an interactive widget in the active view) for controlling properties on the proxy identified by a vtkSMPropertyGroup passed to the constructor. Subclasses are free to determine which interactive widget to create and how to setup the UI for it.
Definition at line 29 of file pqInteractivePropertyWidget.h.
| pqInteractivePropertyWidget::pqInteractivePropertyWidget | ( | const char * | widget_smgroup, |
| const char * | widget_smname, | ||
| vtkSMProxy * | proxy, | ||
| vtkSMPropertyGroup * | smgroup, | ||
| QWidget * | parent = nullptr |
||
| ) |
|
override |
|
inline |
Returns the proxy for the 3D interactive widget.
Definition at line 43 of file pqInteractivePropertyWidget.h.
|
inlinefinalprotectedvirtual |
Get the internal instance of the widget proxy.
Implements pqInteractivePropertyWidgetAbstract.
Definition at line 49 of file pqInteractivePropertyWidget.h.
